DILLON 50 LB. COMPRESSION FORCE GAUGE MODEL X - FREE SHIPPING
You are bidding on a Like New Dillon 50 Lb. Mechanical Compression Force Gauge -1/2 Lb Resolution, Model X.
Load is applied against a hardened
ball which rotates to maintain vertical
alignment as pressure increases.
The ball is held in place with a spring
clip. The threaded mounting hole is
located opposite the loading ball in
the bottom of the beam.

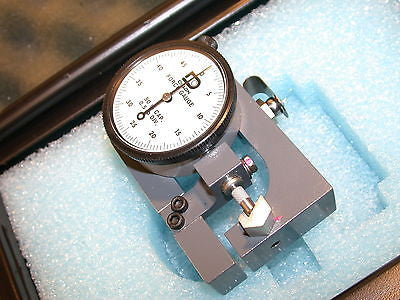

A D-shaped deflection beam is the
heart of the Dillon Force Gauge.
Machined to close tolerances, beams
are heat treated to develop optimum
strength and spring characteristics.
Aircraft-quality
alloy steel is used in
Model X instruments.

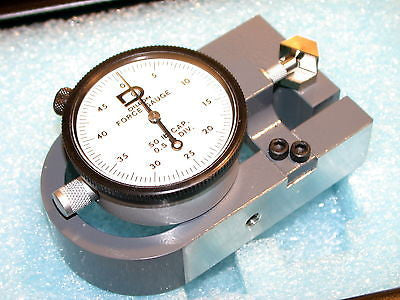

A precision dial indicator is mounted
at the null point of the deflection
beam. The indicator plunger rests
against a slanted anvil at the open
end of the beam, as shown in the
photo. Under compression loads,
the two halves of the beam tend to
close. Tension force causes them to
move apart. This action pushes the
plunger inward, as determined by
the slant of the anvil. Readings
produced on the dial are in direct
relation to applied load. The pointer
revolves 360° clockwise under
compression or tension forces.
Push-pull gauges read half scale
(180°) clockwise in compression, and
counterclockwise, 180° from center
zero under tension loads.

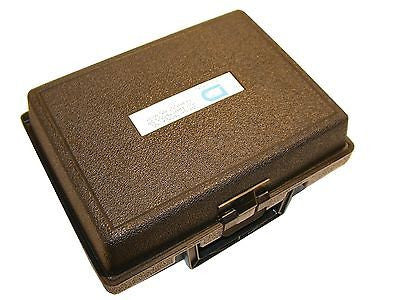

Includes nice plastic carrying/storage.
For more Information see:

http://www.dillonqualityplus.com/pdf/DMFGAUGE.PDF

http://www.scalesgalore.com/product/?product_id=6313

http://www.force-gauge.net/dillon_compression_tension_gauges.htm
I will fully guarantee this precision gage-new cost $900.
We have lots of quality tools available - see my other auctions.
Shipping in the Continental US is FREE - - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
