NEW PASS SEYMOUR Extra Heavy Duty Double Pole, 20 Amp, 120/277 Volt Switch

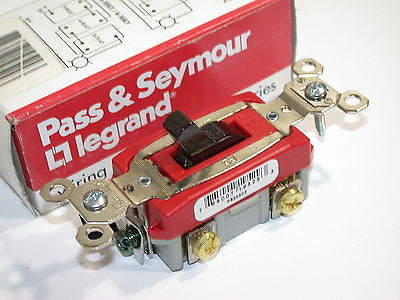

This is an auction for a Brand New in the Box, Pass Seymour Extra Heavy Duty Double Pole, 20 Amp, 120/277 Volt Switch, Catalogue # PS20AC2.
Product Details

• Size: 1.320 Inch Width x 1.073 Inch Depth x 3.281 Inch Height

• External screw-pressure-plate back and side wired

• Accepts 14-10 AWG copper or copper-clad conductors

• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce

• Auto-ground and external, screw-pressure-plate back wiring on all terminals for fast, easy installation and excellent electrical connection
Pass Seymour Extra heavy-duty toggle switch in ivory color measures 1.320 Inch x 1.073 Inch x 3.281 Inch and features high quality thermoplastic polycarbonate construction for added strength. The 2-Pole switch has an exclusively designed back body and is made of glass-reinforced nylon for durability. Industrial grade switch features reliable nickel-plated steel strap, bumper pads to perform quiet operation and has an auto-ground clip to assure positive ground. Switch comes with a unique shallow design for easy installation and has a locking support to provide resistance to face/back body separation.
Switch is rated at 120/277 VAC, 20 Amps, 2 Watts and has silver alloy contacts to offer long life or better heat dissipation. It accepts 14 - 10 AWG copper/copper-clad conductors and has back/side wired connections for added convenience. Switch employs cam mechanism to control fast make and positive break operations to reduce arcing. It has standard ground terminal and heavy-gauge one-piece copper alloy arm to virtually eliminate the contact bounce. Switch is ideal for residential or commercial applications and is UL 20 listed and CSA certified.

For more information see:

http://www.cesco.com/b2c/product/650255

I will fully guarantee these items.
Shipping in the Continental US is $3.90 - I have very competitive rates for International bidders that are always welcome.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
