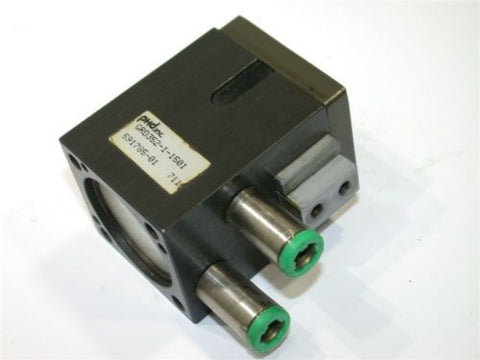

This is an Auction for a PHD Precision Dual Jaw Parallel Travel Air Gripper, Model # GRD352-1-1501.
Very high grip force to weight ratio for efficient use of space and power. Compact size is ideal for handling small parts in confined areas.
Advantages: Small size, pneumatic service, two jaw travels, spring assist, switches, and low cost. Features
Bottom Mount
32 mm Bore
JAW STYLE - Long Travel
Reed Switch Ready
Maximum Force on Close
GRIP REPEATABILITY - Within ±0.002 [±0.05 mm] of original position
1/2" Travel
TOTAL GRIP FORCE AT 87 psi - 54 lbs
BENEFITS Very high grip force to weight ratio for efficient use of space and power.
Compact size is ideal for handling small parts in confined areas.
True parallel jaw travel for easy tooling design.
Double-acting for either internal or external gripping applications. Units are specified for maximum grip force for internal or external gripping for optimum unit performance.
Close tolerance jaw mechanisms minimizes jaw play. Use of male keys allows precise positioning of tooling
Internal jaw mechanism is constructed of hardened steel components and is enclosed for a minimum life of 10 million trouble-free cycles.
Reed, Hall or proximity switches are available for indication of jaw position.
Series GRD Grippers are fully field repairable.
For more information see:
http://litstore.phdinc.com/pdf.asp?filename=GRD.pdf
I will fully guarantee this great unit - more available.
Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
