Bimba FOS-312 2" Stroke 2" Bore Pancake Air Pneumatic Cylinder
Condition: Used

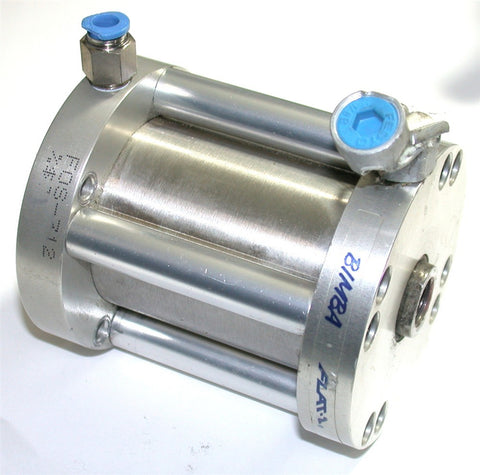

This is a Fixed Auction for a Pneumatic Bimba Pancake Air Cylinder - Single Acting, Model # FOS-312 with 2 Inches of stroke, 2" Bore and a 3/4" piston- clearance hole mounting both ends . PLEASE NOTE - Each Bid is for ONE Cylinder. Single-acting (spring-return) pneumatic compact cylinder - Bimba (Flat-1 series) - 2" bore - 2" stroke - bottom mounting clearance holes - Hard chrome-plated stainless steel 303 rod / Stainless steel 304 body / Buna-N seals
Cylinder measures 3 1/8" Diameter x 3 5/16" High. Force exerted is 3.1 times air pressure. 304 stainless steel body, oil-impregnated bronze rod bushings and 303 stainless steel piston rods. • Ground and polished 303 stainless steel piston rod. • High strength piston to rod connection. • Precision machined, anodized aluminum alloy heads Parallel cylinders can be mounted on close "centers". Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder. I will fully guarantee this great cylinder. Many more sizes available - see my other auctions.
Shipping in the Continental US is $6.90 - I have very competitive rates for our always welcomed International bidders.
