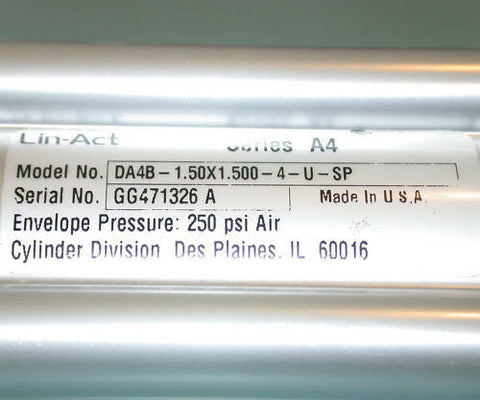

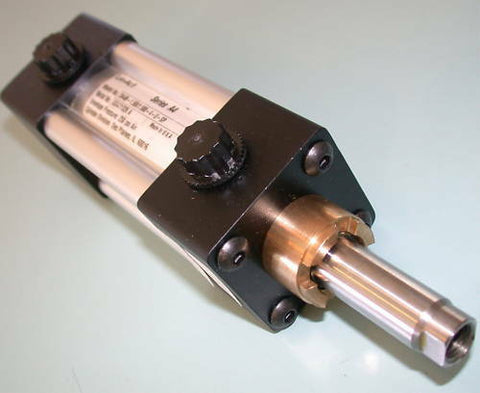

This is for up to 2 Brand New Pneumatic Lin-Act Double End Air Cylinders, Part No. DA4B-1.5 X 1.500-4-U-SP, with 1 1/2 inches of stroke, 1 1/ 2 Inch Bore, 9 1/2" inches overall length and 2 " Square Housing.

Shaft measures 5/8 (.625") diameter and has female threads on the both ends.

Lightweight construction and solid Non-Lube design with proven reliability make the Series A4 Cylinder the high performance, long lasting, economical choice for your air cylinder applications.

Features

Hard Anodized Aluminum Lightweight cylinder body: unique design provides strength and eliminates areas of contamination.

Heads and Caps are Precision, Lightweight Aluminum blocks that are anodized for maximum corrosion resistance.

Piston rod lipseal/wiper combination is completely self compensating for zero leakage at all pressures. Keeps pressure in, contamination out.

Rod Gland Threaded, bronze gland is externally removable without cylinder disassembly for easy maintenance. The check seal cushion is new and different from ordinary cushion designs. It combines the sealing capabilities of a lipseal for efficient capture of air for effective cushioning with check valve action for quick stroke reversal. The design also provides “floating cushions” to assure cushion repeatability and long life. At the start of the stroke in each direction, the check valve design allows full flow to piston face with a minimum pressure drop for maximum power stroke. Additional benefits of the new check seal cushions are increased productivity and top performance for faster cycle time, minimum wear, easy adjustment and low pressure drop.

I will fully guarantee this new cylinder.

Many more sizes available - see my other auctions.

Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.

Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
