THK Linear Bearings Slide 14 1/2" Rails Assembly RSR12ZM New

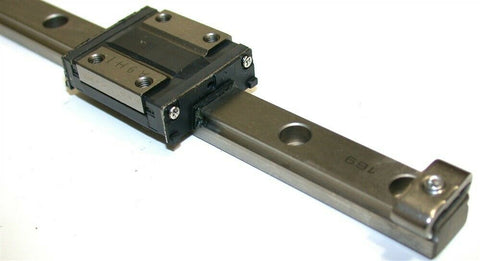

You are bidding on a Brand New THK Linear Way Assembly, No. RSR12ZM. Each bid is for ONE Rail with 1 slide as shown.
The slide measure 1 1/16" wide x 3/8" high x 1 5/16" long. Rail dimensions are approximately 1/2" wide x .29" high x 14 1/2" long. THK linear motion systems are unique motion systems in which linear motion is supported by rolling contact elements. These linear motion systems can best be described as a motion system which uses the rotational motion principle of a deep grooved ball bearing. This principle makes it the easiest to use and most economical of all rotational motion bearings. Since the balls employed as rotating elements are set in raceways having an almost equal radius to the balls that rotate in them, the contact between the balls and the circular arc raceway is changed from conventional point contact to a line contact. This line contact system means that THK slides can handle 13 times the work load and last 2,200 times longer than conventional linear guide ways (round shafts) of the same ball diameter. I will fully guarantee this precision assembly that will make a great precision axis. Many more sizes and lengths available - see my other auctions.
Shipping in the Continental US is $7.90- I have very competitive rates for our always welcomed International bidders.
