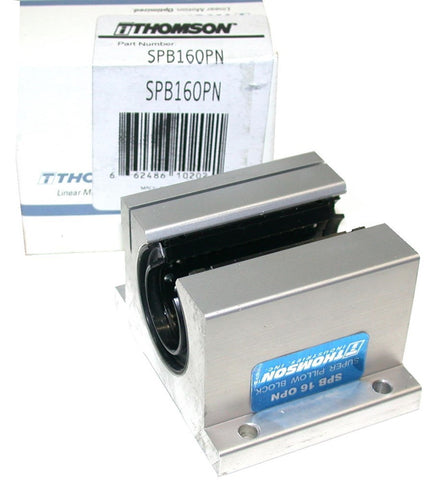

Thomson 1" Super Bearing Pillow Blocks SPB16OPN
Condition: New
This is a Fixed Auction for a New Thomson Super Ball Bushing Linear Bearings Open Pillow Blocks, No. SPB 16 OPN - Dynamic Load Capacity - 780 lbf. Each Bid is for ONE Pillow Block. Super Ball Bushing bearings offer three times the load capacity or twenty seven times the life of conventional linear bearings. Industry standard self-aligning Super Ball Bushing bearings ease installation and minimize wear from minor bore misalignment. Super Ball Bushing bearings can achieve speeds up to 10 ft/s and accelerations up to 450 ft/s2 without the derating factors commonly found in linear guide products. With a coefficient of friction as low as .001, Super Ball Bushing bearings provide a quick easy replacement for high friction plain bearings. The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications. Super Ball Bushing bearing pillow blocks are provided with integral, double acting seals that keep out contaminants and retain lubrication, maximizing system performance and life. When replacing v-ways and flat-ways, the Super Pillow Block’s low coefficient of friction reduces power consumption and provides important design economies.
Specifications
| Pillow block type: |
Standard Block - Single Bearing |
Bearing material: |
Aluminum |
|
| Housing type: |
Open |
Center shaft height: |
1.187 in |
|
| Bushing type: |
Ball Bushing |
Clearance & alignment type: |
Self-Aligning |
|
| Measurement standard: |
Inch |
Dynamic load capacity: |
780 lbf |
|
| Shaft diameter: |
1.0000 in |
Operating temperature range: |
Maximum of +185 °F |
|
| Overall width: |
2.630 in |
Series: |
Super SPB |
|
| Overall height: |
2.000 in |
|||
| Overall length: |
3.250 in |
Many more sizes available - see my other auctions. I will fully guarantee these Pillow Blocks.
Shipping in the Continental US is free- I have very competitive rates for International bidders that are always welcome.
