Tol-O-Matic 9 1/2" Stroke Cable Rodless Air Cylinder 1003.0100 New

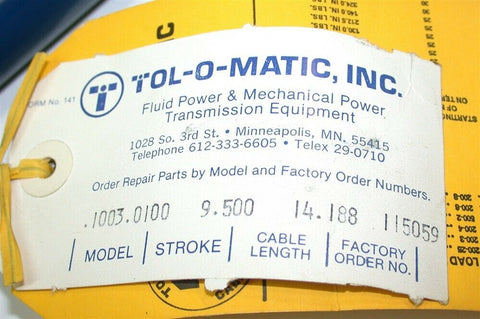

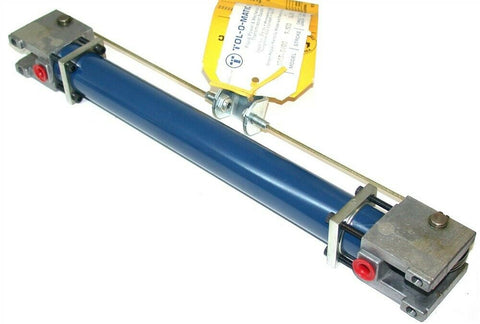

This is a New Tol-O-Matic Pneumatic Aluminum Double Acting Cable Cylinder, Pt .No. 1003.0100 with 9 1/2 Inches of stroke. Introduced over 30 years ago as the first rodless cylinder, the Tol-O-Matic cable cylinder provides reliable linear motion with space and cost-savings features. Its simple yet efficient design solves a wide variety of application requirements. Unlike rod cylinders, the cable cylinder`s stroke is contained within the cylinder itself and that can be a big advantage when space limitations are a consideration. The cable cylinder allows equal force to be applied in both directions. Cables (fastened to both ends of the piston) pass through gland seals at the ends of the cylinder tube, go around pulleys and are then joined by a load bracket or clevis. The cables can be cut different lengths, threaded through a machine or wrapped around a drum to fill a wide variety of rotary and/or linear motion requirements. Tol-O-Matic was first in the industry to offer an automatic tensioning cylinder and combine it with a caliper disk brake for mid-stroke positioning. This is a very expensive air cylinder that measures 14 1/2" overall . I will fully guarantee this great unit. Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.
More cylinders and sizes available -- see my other auctions.
