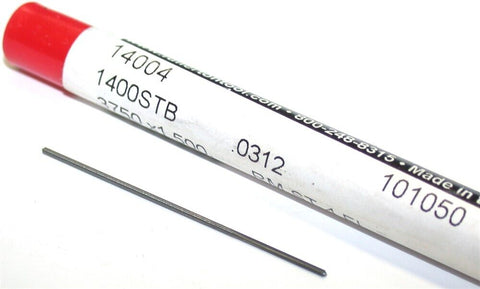

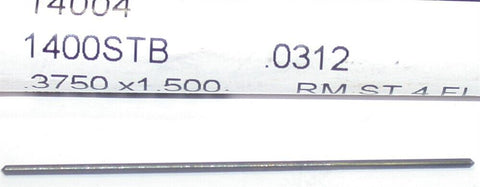

Fullerton 14004 4-Flute Straight Flute .0312" Carbide Reamer
Condition: New
Each Bid is for ONE Tool.
The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.0312" |
| Cutting Diameter (mm) | 0.79mm |
| Cutting Diameter (Inch) | 1/32" |
| Cutting Flute Length (Decimal Inch) | 0.3750" |
| Cutting Flute Length (mm) | 9.53mm |
| Cutting Flute Length (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.0312" |
| Shank Diameter (mm) | 0.79mm |
| Shank Diameter (Inch) | 1/32" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (mm) | 38.10mm |
| Overall Length (Inch) | 1-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | 45 DegreeCutting Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 45 |
| Center Type | Male |
| End Type | Single End |
I will fully guarantee this item.
We have lots of quality tools available - see my other auctions.
Shipping in the Continental US is FREE - I have very competitive rates for our always welcomed International bidders.
