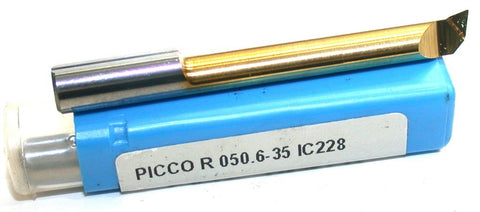

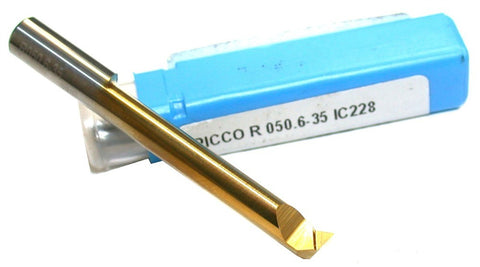

Iscar Picco R 050.6-35 IC228 TiN Coated Carbide Boring Tool 6403675
Condition: New
Each bid is for 1 tool.
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 6 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Functional Length (LF) | 50 mm | Functional Width (WF) | 2.3 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 34 mm |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 5.3 mm | Unit | M |
Used for grooving and threading wide range of workpiece materials at low cutting speed.
I will fully guarantee these tools - new cost $70 each. We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
