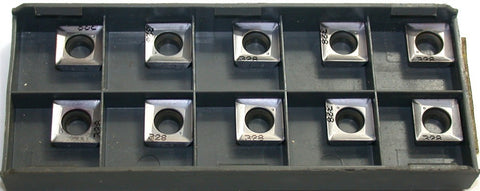

Lot of 10 New Iscar SPMT 100404R-HQ IC328 Carbide Milling inserts 05602612
Condition: New
Each bid is for 10 inserts.
TiCN Finish, 0.1670" Thick, 0.4016" Wide
Specifications
| Insert Style: SPMT | Insert Size: 10 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: IC328 | Corner Radius (Decimal Inch): 0.0157 |
| Corner Radius (mm): 0.40 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch - 4 Decimals): 0.1670 | Coating/Finish: TiCN |
| Relief Angle: 11.00 | Insert Size Code: 100404 |
| Inscribed Circle (Decimal Inch): 0.4020 | Thickness Range (Decimal Inch): 0.1500 to 0.1750 |
| Corner Radius (Inch): 1/64 | Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | Series: HELIQUAD |
| Coating Process: PVD | Cutting Edge Effective Length (Decimal Inch): 0.3859 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Secondary Workpiece Material Code: S |
I will fully guarantee these inserts. We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
