Lot of 10 New Tungaloy XXMU10H308PR-MJ AH120 Carbide TiAlN Finish Mill

Lot of 10 New Tungaloy XXMU10H308PR-MJ AH120 Carbide TiAlN Finish Milling Insert

$ 79⁰⁰

Condition: New

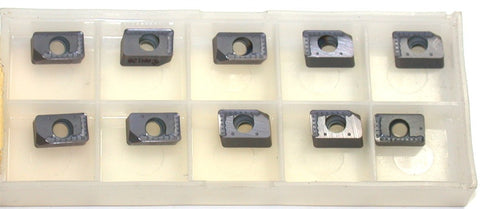

This is an Auction for Lot of 10 New Tungaloy Carbide TiAlN Finish Milling inserts, No. XXMU10H308PR-MJ AH120.

Each bid is for 10 inserts.

TiAlN Finish, 0.1380" Thick, 0.2680" Wide

Specifications

Insert Style: XXMU Insert Size: 10

Insert Material: Solid Carbide Insert Shape: Rectangle

Manufacturer Grade: AH120 Corner Radius (Decimal Inch): 0.0315

Number Of Cutting Edges: 2 Thickness (Decimal Inch - 4 Decimals): 0.1380

Coating/Finish: TiAlN Relief Angle: 11.00

Insert Size Code: 10H308 Material Grade: M15; S10; P15; K15

Inscribed Circle (Decimal Inch): 0.2680 Thickness Range (Decimal Inch): 0.1250 to 0.1500

Corner Radius (Inch): 1/32 Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000

Length Range (Decimal Inch): 0.4000 to 0.4500 Insert Hand: Right Hand

Maximum Depth of Cut (Decimal Inch): 0.3540 Series: XXMU

Coating Process: PVD Rake: Positive

Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel Primary Workpiece Material Code: P; S; H; K; M

Ansi Code: XXMU10H308PR-MJ AH120 Iso Code: XXMU10H308PR-MJ AH120

Standards: ISO Cutting Edge Style: Peripheral; Central

Manufacturers Catalog Number: XXMU10H308PR-MJ Cutter Series Compatibility: EVX

Chip Breaker: MJ UNSPSC Code: 23291601

Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel Insert Holding Method: Screw

Coating Classification: PVD Single or Double Sided Insert: Single

Included Angle Degree: 90 Width (Decimal Inch - 4 Decimals): 0.2680

Multi-Use Tool: No Length (Decimal Inch - 4 Decimals): 0.4170

Country of Origin: Japan

I will fully guarantee these items.
We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
