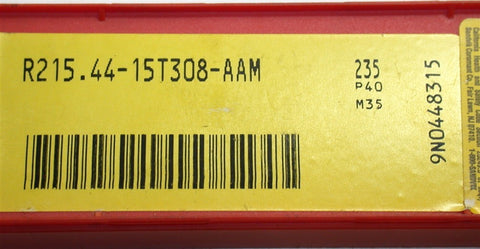

Lot of 10 Sandvik R215.44-15T308-AAM 235 Coromat Carbide Milling Inserts
Condition: New
Each bid is for 10 inserts.
Sandvik Coromant Milling Insert, Series: U-Max®, R215.44 Insert, 15T308 Insert, Rectangle Shape, 0.374 in Inscribed Circle, 0.156 in Thickness, WL Chipbreaker, Positive Rake, 90 deg Lead Angle, 0.158 in Diameter Hole, Manufacturer's Grade: 235
Specifications
| Insert Style: R215.44 | Insert Size: 15 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: 235 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch - 4 Decimals): 0.1563 | Thickness (mm): 3.96 |
| Coating/Finish: TiCN; TiN | Insert Size Code: 15T308 |
| Thickness (Inch): 5/32 | Inscribed Circle (Decimal Inch): 0.3740 |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.5906 |
| Series: R215.44 | Coating Process: CVD |
| Hole Diameter (Decimal Inch): 0.1575 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Steel | Primary Workpiece Material Code: P; M |
| Ansi Code: R215.44-15T308M-WL 235 | Iso Code: R215.44-15T308M-WL 235 |
| Standards: ISO; ANSI | Cutting Edge Style: Corner Rounded |
| Manufacturers Catalog Number: R215.44-15T308M-WL 235 | Chip Breaker: WL |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Steel |
| Insert Holding Method: Screw | Coating Classification: CVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch - 4 Decimals): 0.3740 | Multi-Use Tool: Yes |
| Length (Decimal Inch - 4 Decimals): 0.5906 | Country of Origin: Japan |
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
