Lot of 3 New Iscar T490 LNHT 08040PNR IC808 Carbide Milling inserts 56

Lot of 3 New Iscar T490 LNHT 08040PNR IC808 Carbide Milling inserts 5606320

$ 29⁹⁰

Condition: New

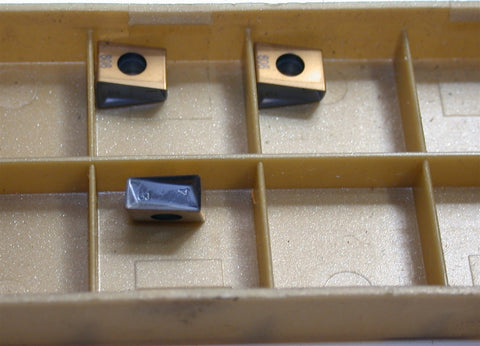

This is an Auction for Lot of 3 New Iscar 5606320 Indexable Carbide TiN Finish Milling inserts, Catalog # T490 LNHT 08040PNR IC808.

Each bid is for 3 inserts.

TiN Finish, 0.2910" Thick, 0.1670" Wide

Specifications

Insert Style: LNHT Insert Size: 08

Insert Material: Solid Carbide Insert Shape: Butterfly

Manufacturer Grade: IC808 Corner Radius (Decimal Inch): 0.0315

Corner Radius (mm): 0.80 Number Of Cutting Edges: 4

Thickness (Decimal Inch - 4 Decimals): 0.2910 Coating/Finish: AlTiN; TiN; TiAlN

Relief Angle: 0.00 Insert Size Code: 080408

Material Grade: Submicron Inscribed Circle (Decimal Inch): 0.1670

Thickness Range (Decimal Inch): 0.2500 to 0.3500 Corner Radius (Inch): 1/32

Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500 Length Range (Decimal Inch): 0.3200 to 0.4000

Insert Hand: Right Hand Maximum Depth of Cut (Decimal Inch): 0.3150

Maximum Depth of Cut (mm): 8.00 Series: HELITANG

Coating Process: PVD Cutting Edge Effective Length (Decimal Inch): 0.3382

Rake: Negative Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel

I will fully guarantee these inserts.
We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
