Lot of 4 New SECO SPMX0903AP-75 T25M TiN Coated Carbide Milling Insert

Lot of 4 New SECO SPMX0903AP-75 T25M TiN Coated Carbide Milling Inserts

$ 34⁹⁰

Condition: New

Brand: SECO

Insert Material: Carbide

Insert Type: Milling Insert

MPN: SPMX0903AP-75 T25M

Model: Carbide Insert

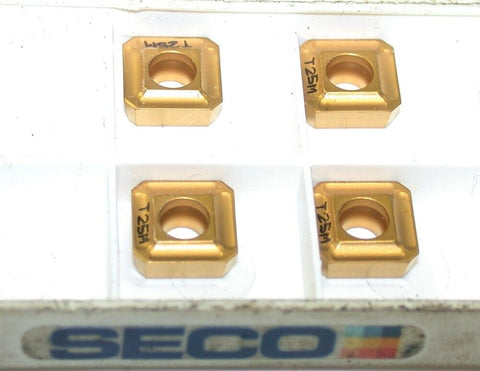

This is an Auction for 4 New SECO TiN Coated Carbide Milling Inserts, No. SPMX0903AP-75 T25M.

Each bid is for 4 inserts.

Specifications

Insert Style SPMX

Insert Size 09

Insert Material Solid Carbide

Insert Shape Square

Manufacturer Grade T25M

Corner Radius (Decimal Inch) 0.0000

Number Of Cutting Edges 4

Thickness (Decimal Inch - 4 Decimals) 0.1252

Coating/Finish TiCN

Relief Angle 11.00

Maximum Depth of Cut (Decimal Inch) 0.3750

Insert Size Code 0903

Material Grade Medium Grain

Width (Inch) 3/8

Length (Inch) 3/8

Thickness (Inch) 1/8

Inscribed Circle (Inch) 3/8

Inscribed Circle (Decimal Inch) 0.3750

Thickness Range (Decimal Inch) 0.1250 to 0.1500

Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000

Length Range (Decimal Inch) 0.3200 to 0.4000

Insert Hand Neutral

Series SPMX-09

Coating Process CVD

Hole Diameter (Decimal Inch) 0.1378

Cutting Edge Effective Length (Decimal Inch) 0.3750

Rake Neutral

Secondary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel

Secondary Workpiece Material Code P; S; M

Ansi Code SPMX0903AP-75

Iso Code SPMX0903AP-75

Standards ISO

Rake Angle 0

Cutting Edge Style T-Land

Manufacturers Catalog Number SPMX0903AP-75

Cutter Series Compatibility R417.19-3; R215.39; R215.49-3

Chip Breaker 75

UNSPSC Code 23291601

Material Application Stainless Steel; Superalloys & Titanium; Steel

Shape Square

Insert Holding Method Screw

Coating Classification CVD

Single or Double Sided Insert Single

Included Angle Degree 90

Width (Decimal Inch - 4 Decimals) 0.3750

Multi-Use Tool Yes

Length (Decimal Inch - 4 Decimals) 0.3750

I will fully guarantee these inserts.
We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
