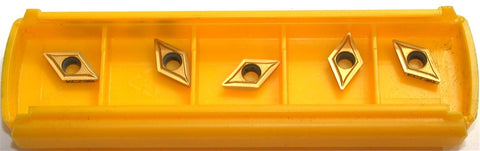

Lot of 5 Kennametal Kenloc DPG2151LF KC730 Carbide TiN Coated Turning Inserts
Condition: New
Each bid is for 5 inserts.
TiN Finish, Neutral, 7.75 mm Long, 55.00 deg D - Diamond (Rhombic) 55-Deg, Series Screw-On
Specifications
| Insert Style: DPGT | ISO Size Code: 070204 |
| ANSI Size Code: 21.51 | Insert Shape: D - Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.2500 |
| Inscribed Circle (Inch): 1/4 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: KC730 | Coating/Finish: TiN |
| Relief Angle: 11.000 | Wiper Edge: No |
| Insert Thickness (Decimal Inch): 0.0938 | Insert Thickness (Inch): 3/32 |
| Insert Hand: Neutral | Series: Screw-On |
| Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness | Chip Breaker Operation: Light Machining; Finishing |
| Number Of Cutting Edges: 2 | Side Clearance: Positive |
| Insert Shape Code: D | Hole Diameter (Decimal Inch): 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals): 2.8000 | Maximum Depth of Cut (mm): 1.25 |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | ISO Insert Code: DPGT070204 |
| ANSI Insert Code: DPGT21.51 | Insert Holding Method: Screw |
| Width (Inch): 1/4 | Clearance Code: P |
| Tolerance Code: G | Coating Process: PVD |
| Length Range (Decimal Inch): 0.6000 - 0.6500 | Rake: Positive |
| Insert Length (Decimal Inch): 0.6104 | Insert Length (mm): 7.75 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; K; M |
| Secondary Workpiece Material Code: S; M | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 1120174 | Material Grade: C3; C4; C2 |
| Proprietary Coating Designation: TiN | Coating Classification: PVD |
| Chip Breaker: LF | Rake Angle: 5 |
| Cutting Edge Style: Honed | Industry Standard Number: DPGT2151LF |
| Width (Decimal Inch - 4 Decimals): 0.2500 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring |
| UNSPSC Code: 23242105 | Insert Size Code: 2151 |
| Country of Origin: UNITED STATES |
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
