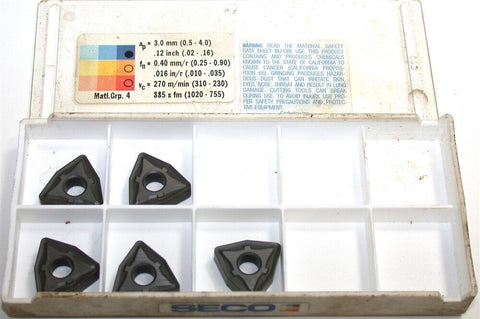

Lot of 5 New Seco WNMG080412-M5 TP2500 Carbide Turning inserts
Condition: New
Each bid is for 5 inserts.
Double-Sided Trigon Inserts for Semi-Roughing and Roughing Applications
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.323" |
| Cutting Edge Effective Length (mm) | 8.20mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.343" |
| Theoretical Cutting Edge Length (mm) | 8.70mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Count | 6 |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | WN0804 |
| Insert Shape Code | W |
| Material | Carbide |
I will fully guarantee these inserts. We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
