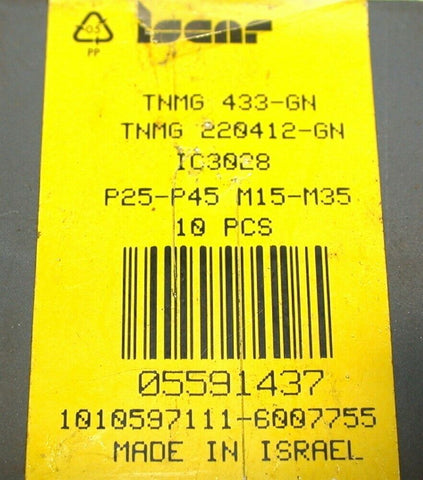

Lot of 9 New Iscar 5591437 Carbide Turning Inserts TNMG 433-GN IC3028
Each bid is for 9 inserts.
Double-sided triangular inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Coating | TiCN |
| Insert Style | TNMG | Grade | IC3028 |
| Corner Radius (RE) | 0.047" | Tool Type | Turn Negative Insert |
| Insert Size | 433 | Min D.O.C. | 0.059" |
| Cutting Edge Length (L) | 0.866" | Depth of Cut Maximum (APMX) | 0.177" |
| Insert Thickness (S) | 0.187" | Max. Turning Feed (ft(max)) | 0.0177 inch/rev |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
I will fully guarantee these inserts. We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
