Lot of 9 New Iscar Carbide groove & turning inserts GIF 8.00-1.20 IC83

Lot of 9 New Iscar Carbide groove & turning inserts GIF 8.00-1.20 IC830

$ 139⁰⁰

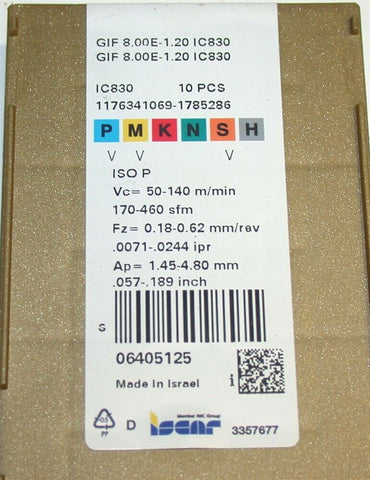

This is an Auction for Lot of 9 New Iscar Carbide double end groove turn and parting Tin Coated inserts, Catalog # GIF 8.00-1.20 IC830.

Each bid is for 9 inserts.

Cutting Width (CW) 0.315? Cutting Edge Material Carbide

Corner Radius (RE) 0.047? Application | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Groove Turn & Parting Inserts | Int. Groove & Turn | Int. Grooving |

Cutting Depth Maximum (CDX) 1.063? Applicable Material | Steel | Stainless Steel | Hi Temp Alloys |

Clearance Angle Major (AN) 7 Degrees Chip Breaker Type FT

Insert Length (INSL) 1.181? Cutting Position External

Minimum Bore Diameter (DMIN) 2.559? Axial Groove Outside Diameter Minimum (DAXN) 3.15?

Feed 0.0244 inch/rev Measurement Type Inch

Coating AlTiN+TiN Tool Type Groove-Turn Precision Inserts

Grade IC830 Body Material Carbide

Shape 90° Rectangular

I will fully guarantee these inserts.

We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
