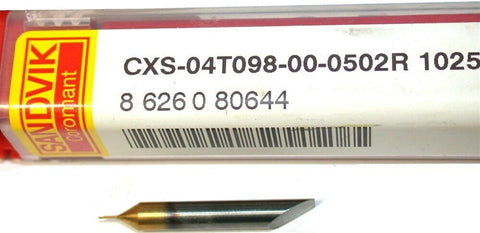

Up to 7 Sandvik Coromat Carbide Tools for Turning CXS-04T098-00-0502R
Each bid is for ONE tool.
Tool cutting edge angle (KAPR)98 deg
Tool lead angle (PSIR)-8 deg
Corner radius (RE)0 mm
Depth of cut maximum (APMX)0.08 mm
Adaptive interface machine direction (ADINTMS)CoroTurn XS -metric: 4
Coolant entry style code (CNSC)0: without coolant
Maximum ramping angle (RMPX)17 deg
Minimum bore diameter (DMIN1)0.5 mm
Connection diameter (DCON)4 mm
Maximum overhang (OHX)13 mm
Usable length (LU)2 mm
Hand (HAND)R
Grade (GRADE)1025
Substrate (SUBSTRATE)HC
Coating (COATING)PVD (Ti,Al)N+TiN
Coolant exit style code (CXSC)0: no coolant exit
Functional length (LF)27.25 mm
Functional width (WF)0.2 mm
Functional height (HF)0 mm
Body width (WB)0.37 mm
Body material code (BMC)Carbide
Weight of item (WT)0.012 kg
Sandvik Coromant is the world's leading producer of tools for turning, milling and drilling. We have over 300 Cat 45 and 50 tool holders for sale - see my other auctions for great deals. I will fully guarantee this item. We have lots of quality tools available - see my other auctions.
Shipping in the Continental US is free- - I have very competitive rates for our always welcomed International bidders.
