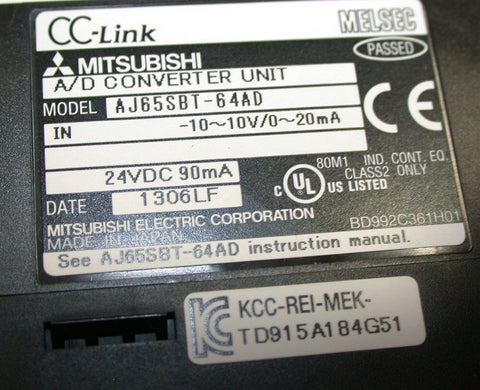

Mitsubishi Melsec Analog Digital Module Converter AJ65SBT-64AD
AJ65SBT-64AD Specifications
Analog Input Points | 4 points (4 channels) | ||
---|---|---|---|
Analog Input | Voltage | -10 to +10 V DC (input resistance: 11 MO) | |
Current | 0 to 20 mA DC (input resistance: 250 O) | ||
Digital Output | -4,096 to +4,095 | ||
Input/Output Characteristics, Resolution | Input Range | Digital Output Value (Maximum Resolution) | |
Voltage Input | -10 To 10 V | -4,000 to 4,000 (2.5 mV) | |
User Range Setting 1 (-10 To 10 V) |
-4,000 to 4,000 (2.5 mV) | ||
0 To 5 V | 0 to 4,000 (1.25 mV) | ||
1 To 5 V | 0 to 4,000 (1.0 mV) | ||
User Range Setting 2 (0 To 5 V) |
0 to 4,000 (1.0 mV) | ||
Current Input | 0 To 20 mA | 0 to 4,000 (5 µA) | |
4 To 20 mA | 0 to 4,000 (4 µA) | ||
User Range Setting (0 To 20 mA) |
0 to 4,000 (4 µA) | ||
Precision (Precision With Respect To Maximum Digital Output Value) | Ambient Temperature: 25±5°C | ±0.2% | |
Ambient Temperature: 0 To 55°C | ±0.4% | ||
A/D Conversion Speed | 1 ms/channel | ||
Absolute Maximum Input | Voltage | ±15 V | |
Current | ±30 mA | ||
Isolation Method | Between communication system and all analog inputs at once: photocoupler insulation Between power supply system and all analog inputs at once: photocoupler insulation Between channels: non-insulation |
||
Dielectric Strength | Between power supply / communication system at once and all analog inputs at once: 500 V AC for 1 minute | ||
Station Type | Remote Device Station (Ver. 1 Remote Device Station) | ||
Number Of Occupied Stations | 1 station | ||
Unit Power Supply | Voltage | 24 V DC (20.4 to 26.4 V DC) | |
Current | 0.090 A (when 24 V DC) | ||
Inrush Current | 8.5 A, 2.3 ms or less | ||
External Wiring Connection Method | Communication part, unit power supply part: 7-point 2-piece terminal block (M3 screw) Input/output part: 18-point direct attachment terminal block (M3 screw) |
||
External Dimensions | Height (H) | 50 mm | |
Width (W) | 118 mm | ||
Depth (D) | 40 mm | ||
Mass | 0.20 kg |
