Lot of 10 New Seco Indexable Coated Carbide Drilling Inserts SPMX0602AP-75 T25M

Lot of 10 New Seco Indexable Coated Carbide Drilling Inserts SPMX0602AP-75 T25M

  • $ 8900

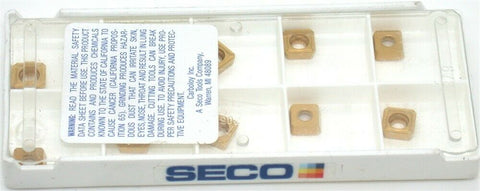

This is an Auction for 10 New Seco Carbide Indexable drilling Tin Coated Inserts, No. SPMX0602AP-75 T25M.

Each bid is for 10 inserts.

Name Description Value
AN clearance angle major 11.000 deg
Barcode Product barcode 16162740001004
Barcode_alt Alternative barcode 16162740001004
CEDC cutting edge count 4
CHW corner chamfer width 0.027 in
CUTINT_SIZESHAPE insert size and shape SPMX0602
EPSR insert included angle 90.000 deg
GAN insert rake angle 0.000 deg
Grade Grade T25M
Gradetype Gradetype Carbide CVD
IC inscribed circle diameter 0.250 in
ItemNumber Item Number 74016162
KCH corner chamfer angle 45.000 deg
L Theoretical cutting edge length 0.250 in
S Insert thickness 0.094 in
SSC Insert seat size code SPMX06..
Weight Net weight 0.002 lb
I will fully guarantee these inserts.

We have lots of quality inserts available - see my other auctions.

Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
