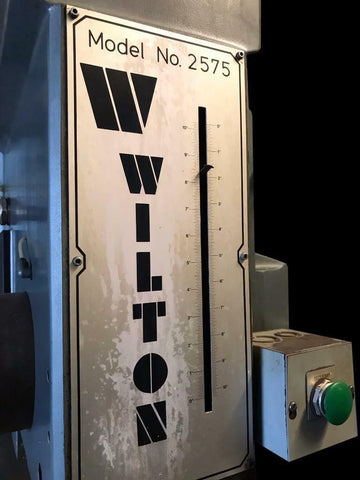

WILTON 2575 DIRECT DRIVE BOX COLUMN DRILL PRESS 40"
This is a fixed listing for a Wilton Drill Press.
Model: 2575
Specifications:
Husky, heavy-duty drill press provides excellent column stability for extra support and greater drilling accuracy
Oversized box column design minimizes deflection and increases drill rigidity

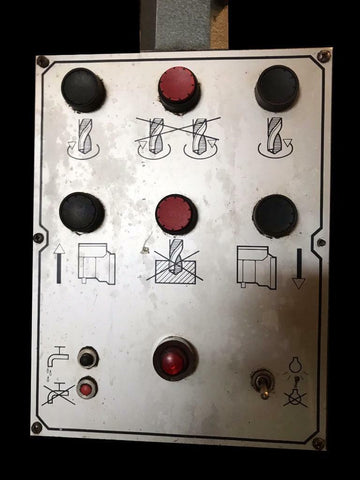

Push button control panel

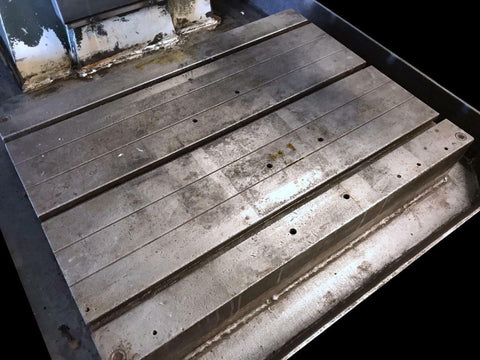

Large, heavy-duty cast iron T-slotted fixed table
Automatic vertical transverse of the drill head on box column with square way system
Power feed gear box fitted with an electro-magnetic clutch for power feed engagement and overload protection
Heavy duty quill and spindle with manual quill locking
Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection, spindle runout within +- .002
Speed and feed selectors are located on one side of the drill head for convenience and ease of operation
Coolant tank and pump integrated into base
Spindle gear box is equipped with steel hardened, ground, shafts and gears
Spindle gear box is internally lubricated in a continuous oil
Automatic tool ejector, work light, hand wheel for fine feed
Drilling Capacity (Mild Steel): 2-3/8"
Drill Capactiy (Cast Iron): 2-1/2"
Tapping Capacity (Mild Steel): 2"
Tapping Capacity (Cast Iron): 2-3/8"
Drills to Center: 40"
Morse Taper: No. 5
Horse Power: 7.5 HP
Speed Ranges: 12
Automatic Feeds: 6
Spindle Travel: 10
Spindle to Table: Min 12.5", Max 45.2"
Headstock raising/lowering motor: 1.5 HP
Headstock Feed feet/min: 3.6
Table Dimensions: 31.5" x 23.6"
Base overall width/depth: 37-3/4" x 58"
Table T-Slot Size: 5/8"
Table Load Capacity: 900 LBS
Center spindle to front of column: 20"
Machine Weight (Approx): 3500 LBS
The drill press is exactly as pictured.
We will happily load your truck at no charge, or assist in planning the most economical delivery.
