Lot of 5 Kennametal NG2031RK KC730 Top Notch Tin Coated Grooving Inser

Lot of 5 Kennametal NG2031RK KC730 Top Notch Tin Coated Grooving Insert

$ 49⁰⁰

Condition: New

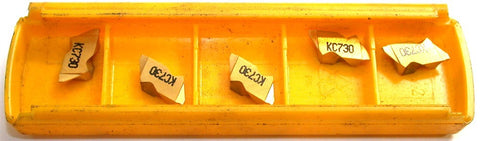

This is an Auction for Lot of 5 New Kennametal Top Notch TiN Finish Carbide Grooving Inserts, No. NG2031RK KC730.

Each bid is for 5 inserts.

TiN Finish, Right Hand, 0.79 mm Cutting Width, 1.27 mm Max Depth, Series Top Notch

Specifications

Insert Style: NG Cutting Width (Decimal Inch): 0.0311

Cutting Width (mm): 0.79 Insert Hand: Right Hand

Maximum Depth of Cut (Decimal Inch): 0.0500 Maximum Depth of Cut (mm): 1.27

Insert Material: Carbide Manufacturer Grade: KC730

Full Radius: No Corner Radius (Decimal Inch): 0.0035

Corner Radius (mm): 0.09 Rake: Positive

Measurement Type: Metric Insert Size: 2031

Material Grade: C3; C4; C2 Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750

Maximum Depth Of Cut Range (mm): 0.00 to 2.00 Lead Angle: 3

Multi-use Tool: No Series: Top Notch

Coating Process: PVD Rake Angle: 10

UNSPSC Code: 23242105 Chip Breaker: K

MSC/Manufacturer Number: NG2031R/LK Insert Height (Decimal Inch): 0.2190

Included Angle Degree: 55 Coating/Finish: TiN

Country of Origin: UNITED STATES

I will fully guarantee these inserts.
We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
