Kennametal UEBD0188J3A GOmill 3/16" Diameter 3 Flute AlTiN Carbide Ball End Mill

Kennametal UEBD0188J3A GOmill 3/16" Diameter 3 Flute AlTiN Carbide Ball End Mill

  • $ 2490

Condition: New

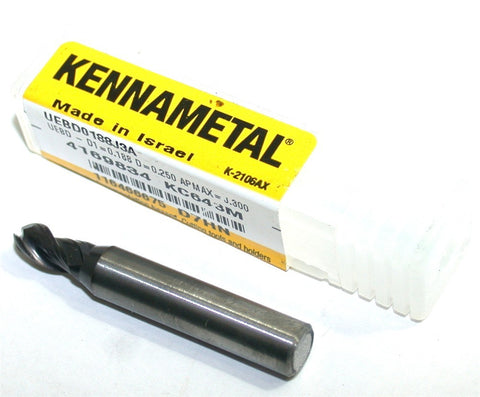

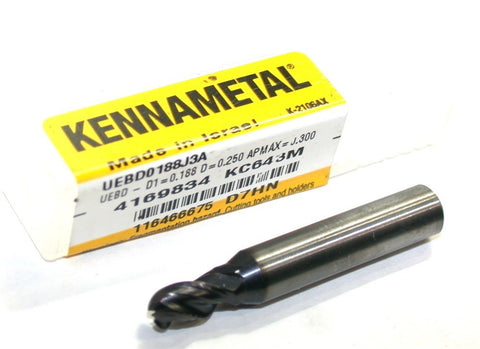

You are bidding on a New Kennametal GOmill 3/16" Diameter 3 Flute Solid AlTiN Coated Carbide Ball End Mill, No. 4050-26210.

Each bid is for ONE end mill.

Coated fine-grain grade with PVD multilayer (AlTiN). KC643M™ is a very thin and hard PVD coating particularly suited for cutting steel, cast iron, stainless steel (wet), and titanium (wet). This grade can be used for materials with hardness up to 52 HRC.

Features and benefits
Economic solid carbide end mill with short style shanks, saving expensive carbide.

Not recommended for reconditioning.

Extremely stable cutting conditions due to short design.

Center cutting for plunging and ramping operations.

Unequal flute spacing for chatter-free machining at highest feed rates.

Specifications

Mill Diameter (Inch) 3/16
Mill Diameter (Decimal Inch) 0.1875
Number Of Flutes 3
End Mill Material Solid Carbide
Length of Cut (Decimal Inch) 0.2969
Length of Cut (Inch) 19/64
Shank Diameter (Decimal Inch) 0.2500
Shank Diameter (Inch) 1/4
Overall Length (Decimal Inch) 1.5000
Overall Length (Inch) 1-1/2
Single Or Double End Single
Coating/Finish Family AlTiN
Centercutting Yes
Cutting Direction Right Hand
Flute Direction Right Hand
Extended Reach No
Coolant Through No
Helix Angle 38
Primary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code P; S; H; K; M
Coating/Finish AlTiN
Variable Helix No
Variable Index Yes
Chipbreaker No
Flute Type Spiral
Shank Type Straight-Cylindrical
Material Grade Fine Grain
Length Type Stub
Coating Classification PVD
Helix Style Medium
Nose Radius (Decimal Inch) 0.0938
Neck Length (Decimal Inch) 0.0000
Reach Length (Decimal Inch) 0.2969
Mill Diameter Tolerance +0.0000/-0.0020 in
Shank Diameter Tolerance +0.0000/-0.0031 in
Series GOmill UEBD
System Of Measurement Fractional Inch
Additional Information Economic Solid Carbide End Mill with Short Style Shanks, Saving Expensive Carbide. Not Recommended for Reconditioning. Extremely Stable Cutting Conditions Due to Short Design. Center Cutting for Plunging & Ramping Operations. Unequal Flute Spacing for Chatter-Free Machining At Highest Feed Rates.
Manufacturers Catalog Number UEBD0188J3A
Material Removal Type Roughing & Finishing
UNSPSC Code 27112803
Country of Origin Israel


I will fully guarantee this item.

We have lots of quality tools available - see my other auctions.

Shipping in the Continental US is $4.90- - I have very competitive rates for our always welcomed International bidders.
