Mean Well Switching Power Supply Output: 24 volts, 5 amps, 120 watts DR-120-24
Condition: Used
Brand: MEAN WELL
Type: Switching Power Supply
MPN: DR-120-24
Nominal Output Voltage Rating (DC): 24 V

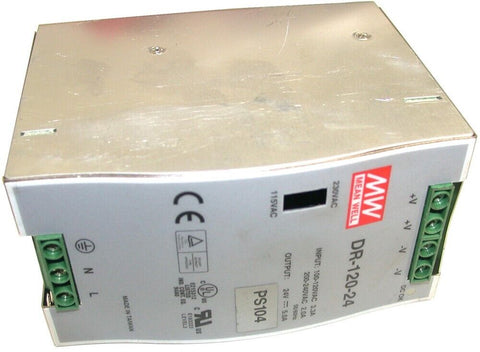

You are bidding on a Mean Well switching Power Supply, No. DR-120-24.
| Specification | Value |
|---|---|
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Power Rating | 120 W |
| Input Voltage | 88 VAC to 132, 176 VAC to 264 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Output Connector Type | Screw Terminal Block |
| Agency Approvals | UL, CUL, TUV, CB, CE, EN |
| Low Power Source (LPS) | No |
| PFC Function | No |
| Maximum Input Current | 2.6 A |
| Family | DR-120 |
| Efficiency | 84% |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 60°C |
| Color | Silver |
| Width | 4.93 in. |
| Height | 3.94 in. |
| Depth | 2.58 in. |
| Number of Outputs | 1 |
Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.
