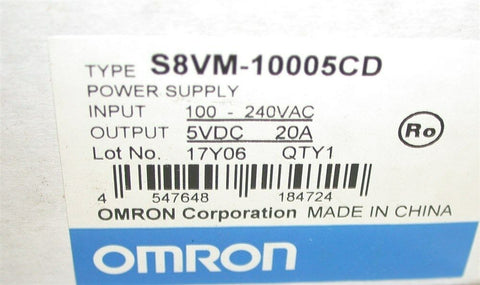

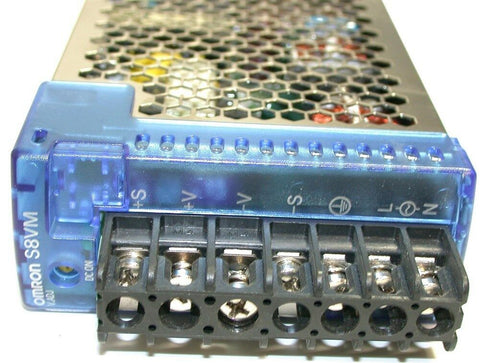

New S8VM-10005CD OMRON Power Supply 100W / 5V / 20A DIN rail housing
Power Supply; AC-DC; 5V; 20A; 85-264V In; Enclosed; DIN Rail; PFC; 100W; S8VM Series
Product Specifications
- Series
- S8VM
- Brand Name
- Omron
- MFR Part Number
- S8VM10005CD
- UNSPSC
- 39121004
- Item
- Power Supply Unit
- Type
- Switching
- Configuration
- Covered
- Operation Type
- Series
- Number of Outputs
- 1
- Input Frequency
- 50/60 Hz
- Power Output
- 100 W
- Input Ratings
- 100 - 240 VAC, 1.4 A at 100 VAC, 0.7 A at 200 VAC
- Output Rating
- 5 VDC, 20 A
- Mounting Type
- DIN Rail
- Dimensions
- 160.5 mm Length x 33 mm Width x 82.5 mm Height
- Standard/Approvals
- UL 508/60950-1, cULus Listed, CE Certified, CSA C22.2 107.1/60950-1, RoHS Compliant
- Application
- For Commercial Applications
I will fully guarantee this very expensive unit.
Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.
