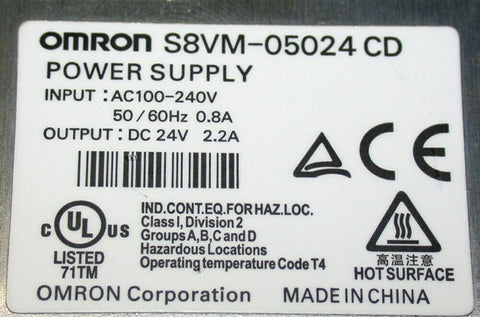

Omron Switching Mode Input AC100-240 Output DC24V 2.2A Power Supply S8VM-05024CD
Each bid is for One Unit.
[Power rating] 50 W
[Efficiency] 80 % Min.
[Rated input voltage] 100 to 240 VAC
[Allowable-input voltage variable range] 85 to 264 VAC
[Frequency] 50/60 Hz (47 to 63 Hz Single-phase)
[Rated input current] 0.8 A Max. (At 100 VAC input)
0.4 A Max. (At 200 VAC input)
[Leakage current] 0.4 mA Max. (At 100 VAC input)
0.75 mA Max. (At 200 VAC input)
[Inrush current] 17.5 A Max. (At 100 VAC input)
35 A Max. (At 200 VAC input)
[Output voltage] 24 VDC
[Ripple] 0.75 %(p-p) Max.
[Static input variation influence] 0.4% Max. (At 85 to 264 VAC input, 100% load)
[Static load variation influence] 0.8% Max. (At rated input, 0 to 100% load)
[Rated output current] 2.2 A
[Start up time] 800 ms Max.
[Hold time] 20 ms TYP.
[Overload protection] 105% to 160% of the rated output current
Gradual current increase/voltage drop, Intermittent operation, Automatic reset
[Overvoltage protection] Operated at 125 to 145 % of the rated output voltage, Shut-off
Resetting: Reset the power by turning it back (OFF time: at least 3 min)
[Series operation] Yes (Up to 2 Power Supplies with external diode)
[Applicable standard] UL: Standard No.: UL508 (Listing), UL60950-1
CSA: Standard No.: cUL: CSA C22.2 No.14, No.213 (Class I / Division 2), cUR: CSA C22.2 No.60950-1
EN: EN50178, EN60950-1
EC Directive (EMC Directive): Emission Enclosure: Conforms to EN61204-3 Class B
Emission AC mains: Conforms to EN61204-3 Class B and based on FCC Class B
SEMI: F47-0200 (200 VAC input)
Other: VDE0106 / P100
[Output indicator] Yes (color: green)
[Heat radiation] Natural air-cooling
[Construction] Open-frame type
[Mounting type] Bottom-mounting type
[Weight (Main)] Approx. 290 g
I will fully guarantee this unit.
Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.
