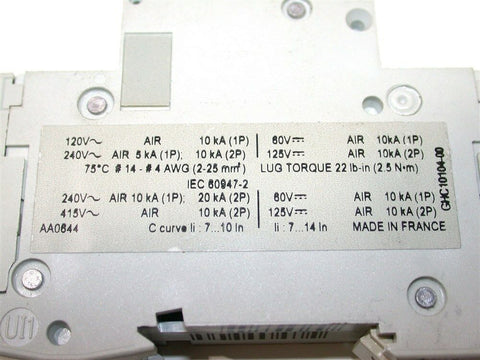

You are bidding on up to 12 Merlin Gerin Din Mounted Miniature Circuit Breaker Multi 9 (C60), 15A, 1-Pole, 240 Vac, 60 Vdc, HACR Rated, Catalogue No. 60112.

Each bid is for ONE Breaker.

C curve: against the overcurrents of circuits feeding conventional loads

AC Voltage Rating: 120/240VAC

Miniature Circuit Breaker, Amps 15, Number of Poles 1, Curve Type C, AC Voltage Rating 120/240VAC, DC Voltage Rating 60/125VDC, Max. AIR Rating 10kA, Trip Type Thermal Magnetic, Terminal Connection Lug, Mounting DIN Rail, Application Industrial Controls and Automation, Communication Equipment, Computers, Medical Equipment, etc., Min. Wire Size 18 AWG, Max. Wire Size 4 AWG, Length 4.21 In., Width 0.71 In., Depth 2.87 In., Frame Size 35A/C60N, Standards UL 489 Listed, CSA C22.2 No. 5-02, Series 601.

For more Information see:

https://www.ite.com.sg/pdf/MCB%20and%20ELCB.pdf

Gerin is recognized world wide as one of the leading electrical suppliers.

I will fully guarantee these breakers - more available, see my other auctions.

Shipping in the Continental US is $4.90 - I have very competitive rates for our always welcomed International bidders.

Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).

.
