Condition: Used

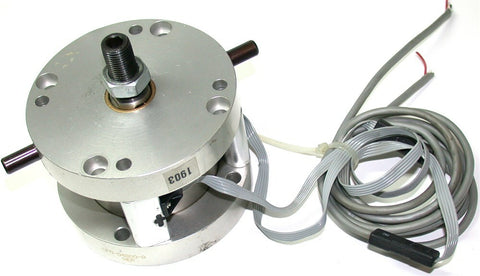

This is for a Pneumatic Bimba Single Acting, Single End Rod Magnetic Pancake Spring return Air Cylinders, Model # CFO-04800-A with 1 Inch of stroke, 2 1/2" Bore, and a 3/4" piston. Cylinder measures 5 1/8" High x 2 3/4" Diameter.Each bid is for ONE Cylinder. Trunion mounting with counterbored holes top and bottom for mounting.

Bimba Flat-1 cylinders are the shortest in length of all space-saving cylinders.

304 stainless steel body, oil-impregnated bronze rod bushings and 303 stainless steel piston rods.

304 stainless steel cylinder body with a mirror finish I.D. Stainless steel fights corrosion and scoring from dirt particles. The result is longer piston seal life.

Precision machined, anodized aluminum alloy heads.

2 1/2" Bore -- will exert a force of approximately 5 times the air line pressure. Includes 2 end of stroke sensors shown.

Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.

I will fully guarantee this great cylinder.

Many more sizes available - see my other auctions.

Shipping in the Continental US is $7.90 - I have very competitive rates for our always welcomed International bidders.
