Condition: Used

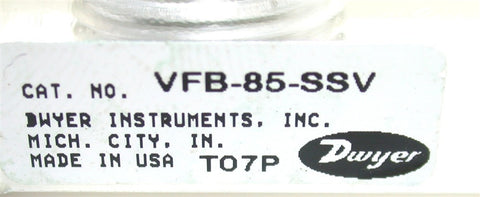

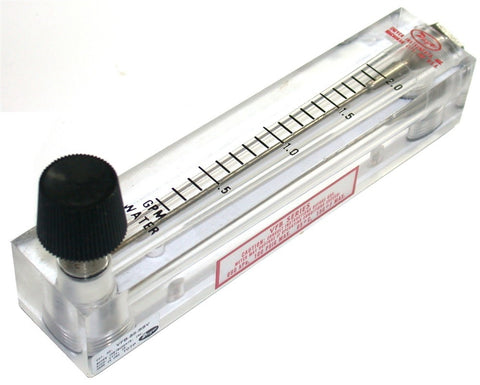

You are bidding on a Dwyer Direct Reading Flow meter, Model VFB-85-SSV, 0.2-2GPM WATER with Stainless Steel Valve.
Scales are easy to read - The front scale location and white background provides excellent visibility.
Mid-range calibration is established with a master flowmeter.
Durable and attractive construction - The machined acrylic bodies of the Visi-Float® flowmeters are practically unbreakable.
Fabrication is backed by over 60 years of experience in acrylic instrument machining.
The tapered bore is precision machined to a smooth surface that provides perfect visibility of the indicating float. Available with either brass or stainless steel inlet and outlet connections and are tapped for 1/8" NPT thread.
All standard models employ Buna-N o-rings for leak proof operation and have back Connections for piping.
Easy installation - All Visi–Float® flowmeters have metal mounting inserts on rear for panel mounting. They can also be supported directly by system piping.
Specifications:
Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal Parts: brass standard, stainless steel optional; Float: stainless steel, black glass, aluminum, K Monel depending on range.
Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy: VFA = 5% of full scale; VFB = 3% of full scale.
Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation: Mount in vertical position.
Weight: VFB: 7.2-8.8 oz (.20-.25 kg).
Shipping in the Continental US is $5.90 - I have very competitive rates for International bidders that are always welcome.
I will fully guarantee this item.
