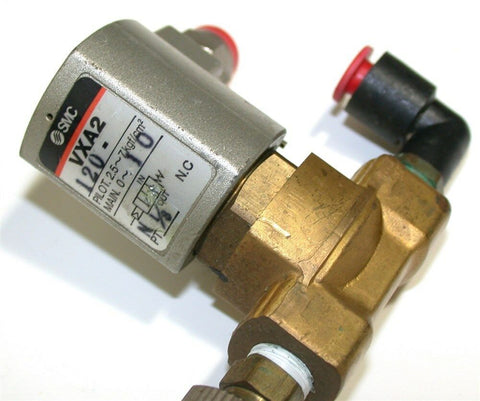

UP TO 3 SMC 3/8" VACUUM DRAIN SEPARATOR AMJ3000-NO2B W/2-WAY MEDIA VALVE VXA2120
Series AMJ is effective for removing water droplets from the air sucked into vacuum pumps and ejectors. Over 90% of droplets can be removed through the use of a special water droplet removing element. The provision of a drain cock makes it possible to discharge the drain manually after breaking the vacuum. Even when the element is saturated with water, there is almost no drop in pressure (increase in resistance).
Remove water droplets from air by simply installing in vacuum equipment connection lines. Effective for removing water droplets from the air sucked into vacuum pumps and ejectors, etc. Over 90% of droplets can be removed through the use of a special water droplet removing element. The provision of a drain cock makes it possible to discharge the drain manually after breaking the vacuum. Even when the element is saturated with water, there is almost no drop in pressure (increase in resistance). The element can be replaced with a single touch. Max. supply pressure 150 psi Recommended flow rate l/min (ANR) - 200 Water drop removal ratio - 90% Includes mounting bracket, air ports, media valves and all items shown For more Information see: http://www.smcpneumatics.com/pdfs/AMJ.pdf
http://www.smcpneumatics.com/pdfs/VXA.pdf I will fully guarantee this Unit. Shipping in the Continental US is $8.90- I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern)
