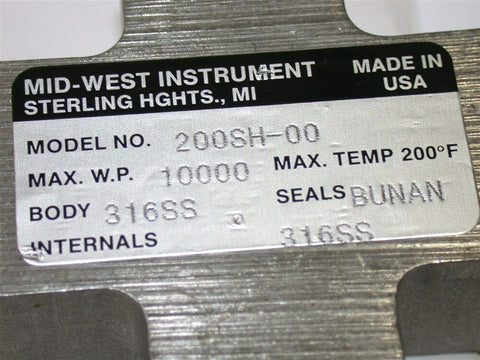

UP TO 4 NEW MID-WEST INSTRUMENT 1/2" FNPT PRESSURE LIMITING AIR VALVES 200SH-00
Each bid is for ONE Valve. 1/2" FNPT
Valve Shut-Off Pressure Range - 50 to 5000 PSIG
MAX. W.P. PSIG (bar) - 10,000 (680)
Model 200 “Gauge Minder” features a pressure limiting valve that blocks off excess pressure to the instrument, preventing calibration failure, internal damage, and “blow-out” from over-ranging - a principal cause of instrument failure. Model 200 is supplied with a set of range springs designed to set the shutoff pressure point at any pressure from 50 to 5000 PSI. The automatic shutoff valve is positive on closing and is non-chattering. Once closed, pressure need only be reduced approximately 10% of set pressure to re-open the valve. The accuracy of the instrument used with the Model 200 is in no way affected up to the set point of the pressure shutoff. Model 200 also features an adjustable needle valve designed to dampen system pulsation reducing instrument oscillation, improving readability, and extending instrument life without the addition of a snubber. Instrument reliability is improved and the cost to repair, re-calibrate, or replace the instrument is lowered. Operating safety is also enhanced. For more information see: ( http://www.midwestinstrument.com/pdfs/bulletins/Bulletin_200_11.pdf ) I fully guarantee this new Air Valve - Made in the USA. Shipping in the Continental US is $6.90 - I have very competitive rates for International bidders that are always welcome.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern)
