ADTRAN INTERGRATED ACCESS SYSTEM W/ POWER SUPPLY #750

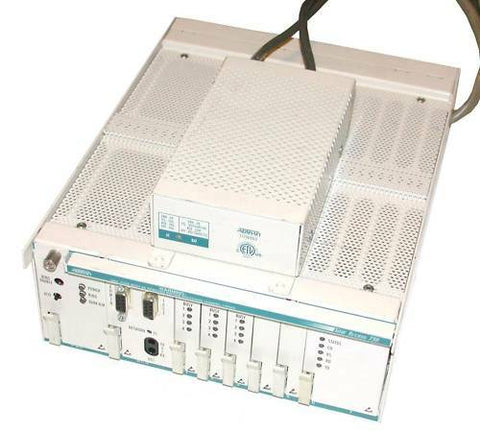

You are bidding on a Very Nice Adtran Intergrated Access System W/ Power Supply, Model #750.

Retail cost of more than $240.00

This is a very nice system in like new condition and it is fully guatranteed.

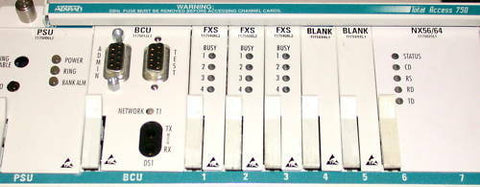

Total Access 750 Interface

Network InterfaceLine Rate: 1.544 Mbps +/- 75 bpsPhysical Interface

RJ-48C: Modular, 8-pinFraming

D4(SF)/ESF/TR-08

ANSI T1.403

Line Code: AMI / B8ZS

T1 Transmit Timing: Loop, Local, External

Performance MonitoringReports: NI information stored for last 8 hours

(60-minute increments)

PRMS: ANSI performance report messagesAgency Approvals

UL 1950

FCC Part 15 (Class A) and Part 68

NEBS Level 3Environment

Operating Temperature: –40° to +70°C

Storage Temperature: –30° to 70°C, (–4° to 158°F)

Relative Humidity: Up to 95%, non-condensingPhysical

Dimensions: 3.5" H, 11" D, 8.5" W

Weight: 8 lbs (fully loaded)

PowerAC Power (using external power supply):

90-130 vAC, 60Hz, 50W Max

DC Power: 40-56 vDC, 50W Max

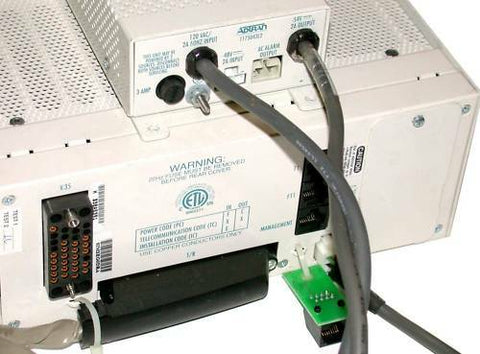

Power Supply Specs:

-48V--- 2A input

120VAC/ 2A, 60Hz input

AC Alarm output

-54V 2A output
