Allen Bradley PLC Controller Micrologix 1500 System
Condition: Used
Brand: Allen Bradley
MPN: Micrologix 1500
Model: Micrologix

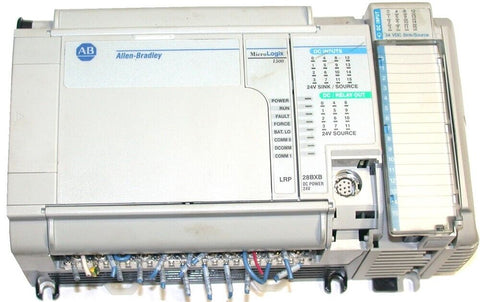

You are bidding on a Very Nice Allen-Bradley MicroLogix 1500 PLC System. The MicroLogix 1500 is the most powerful member of the MicroLogix family. In fact, it can handle many applications that traditionally called for larger, more expensive controllers. With its removable processor, base units with embedded I/O and power supply and expansion through 1769 Compact I/O the MicroLogix 1500 packs all of the best features of a modular system into a low-cost, small footprint. This dynamic controller is a more powerful and expandable addition to the MicroLogix family: Application flexibility and versatility with Compact I/O means a small footprint and expansion to over 100 I/O points Large onboard non-volatile memory Real Time Clock (RTC) capabilities allow time scheduling of control Program portability allows user programs to be uploaded, downloaded and transported via Memory Modules Built in PID capabilities Data Access Tool for data monitoring and adjustment Eight Latching (pulse catch) inputs Four event interrupts Performance Approximate scan time for a typical 1K user program (includes timers, counters, etc.): 1 millisecond Simple bit instruction execution: 0.7 microseconds 2 millisecond selectable timed interrupt (STI) 1 millisecond timers Two 20 kHz high-speed counters each with eight modes of operation (up, down, up/down, quadrature, etc.) Two 20 kHz high-speed outputs (PTO or PWM with acceleration/deceleration profiles) Rugged tongue-and-groove package design, to provide strength and system reliability May be expanded to include up to 16 Compact I/O modules Included 1500 Controller

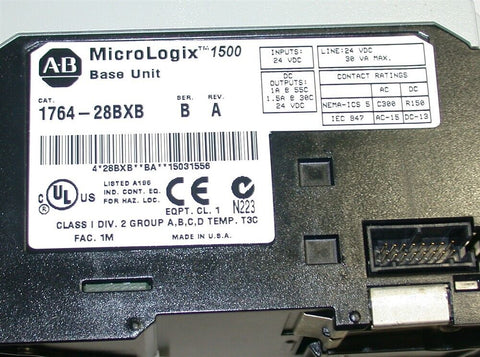

1764-28BXB Base Unit
The 1764-28BXB is a MicroLogix 1500 base unit that belongs to the Bulletin 1764 product family. It has a line power voltage requirement of 20.4 to 30VDC, integrated Eight (8) Standard 24VDC sink/source discrete inputs, Eight (8) High-Speed inputs and Six (6) Relay Outputs, Four (4) Standard 24VDC outputs and Two (2) Fast 24VDc outputs. It has integrated RS232 communication ports for device communication.

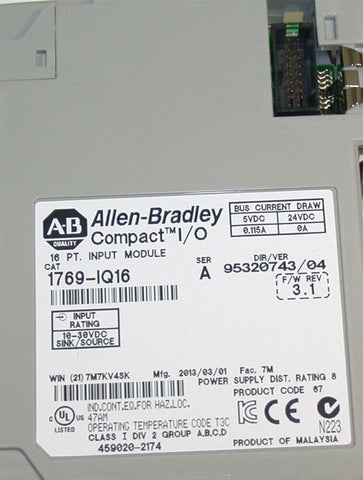

1- 1769-IQ16 Input Module, CompactLogix, DC Digital, 16 Point, 10-30VDC, 16 Sinking or Sourcing Point Input
1- 1769-ECR Right End Cap/Terminator
This is a great unit that I will fully guarantee.
Shipping in the Continental US is $19.90 - I have very competitive rates for our always welcomed International bidders.
