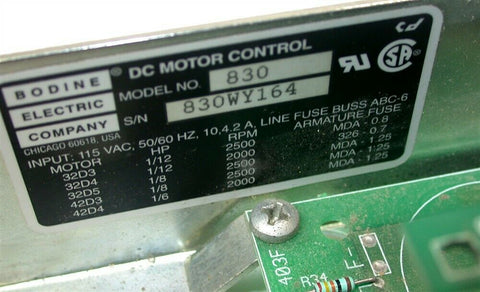

Bodine DC Open Chassis Speed Control Model Model 830
- Ships in 1 business day from Rochester, NY
- Express shipping at checkout
- 30-day returns policy
- Secure checkout cards, PayPal & more
About this item
Standard Features
Operates off 115 Volt AC line.
Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
Dip switches to easily calibrate control for different motor sizes.
Line voltage and temperature compensation minimize speed drift.
Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
10k ohm remote speed pot and 24" connecting wire supplied with each control.
Connections for optional user-supplied inhibit switch.
Terminal block for quick line and motor connection.
Plug-in connector for speed pot and optional usersupplied inhibit switch.
Flexibility in adding plug-in interface boards.
Built-in line and motor fuseholders (both fuses supplied).
Application Information
Rated for continuous operation in 50° C ambient with no additional heat sink.
Designed to be mounted in separate enclosure supplied by user.
Drives Bodine 130 Volt permanent magnet DC motors.
Drives 90 Volt "SCR duty" and 130 Volt "PWM duty" permanent magnet DC motors made by other manufacturers.
Category Filtered SCR DC Chassis, Basic Speed Control FPM
HP Rating 1/6
Input Voltage (VAC 50/60 Hz) 115
Output Voltage (VDC) 0-130
Continuous Output Current (Amps) 1.25
Peak Output Current (Amps) 2.5
Form Factor 1
Weight (lbs) 3.4
Product Type FPM-0830C
New Price - $174
