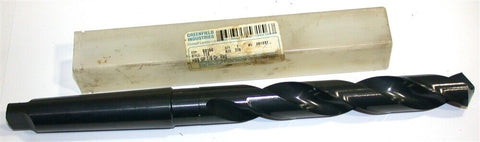

Greenfield 7/8" Diameter #3 Morse Taper Shank Drill No. 53156 New
- Technical Specification
- Item Taper Shank Drill Bit
- Drill Bit Size 7/8 in
- Decimal Equivalent 0.8750
- Measurement System Fractional Inch
- Material - Machining High Speed Steel
- Finish - Machining Black Oxide
- Drill Bit Point Angle 118 Degrees
- Drill Bit Point Type Conventional Point
- Flute Type Spiral
- Number of Flutes 2
- Flute Length 6 1/8 in
- Maximum Drilling Depth 6 1/8 in
- Helix Angle 28 Degrees
- Cutting Direction Right Hand
- Spiral Direction Right Hand
- Shank Type - Machining Taper
- Taper Shank Size MT3
- Overall Length 1 3/4 in
- Depth:Dia. Ratio 4xD
- Coolant Fed Non-Coolant Through
- Drill Bit Grouping Individual
- Series 110
- Standards Not Rated
- Drill Diameter Tolerance +0.0000 in /-0.0012 in
- Material Grade - Machining General Purpose
- Primary Material Application Cast Iron, Steel, Tool and Die Steel
- Primary Material Application ISO Code K, P
Made in the USA
I will fully guarantee these new bits. We have lots of additional reamers sizes available - see my other auctions.
Shipping in the Continental US is $8.90- I have very competitive rates for International bidders that are always welcome.
