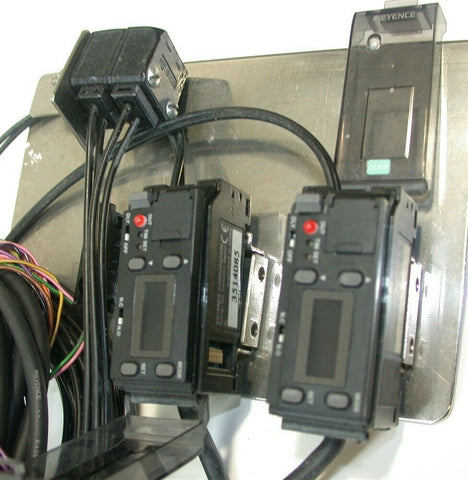

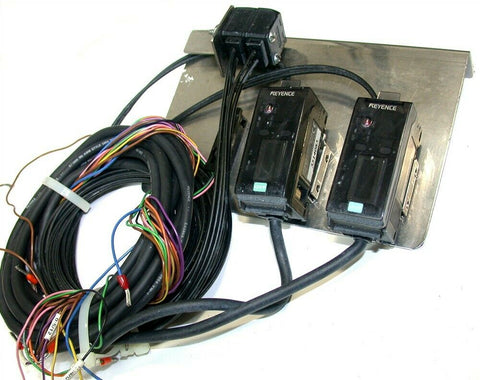

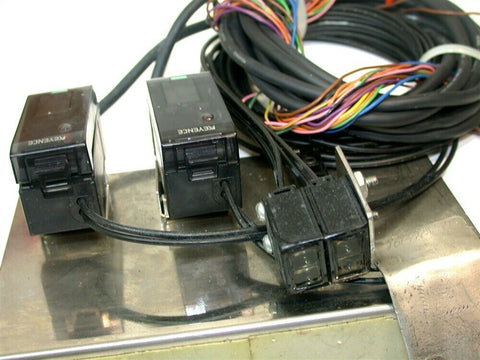

Keyence Fiberoptic Sensor Assembly CZ-K1P
Keyence · See all

Keyence Fiberoptic Sensor Assembly CZ-K1P

SOLDThis item has sold.

Here are similar parts that are in stock and ready to ship.

About this item

The CZ Series of sensors can differentiate among transparent objects with only slight color differences due to its combination of the principle of recurrent reflection, which sends light through the workpiece twice and increases the light's attenuation, with a proprietary KEYENCE optical system and the sensor's high-precision detection capability that results from its separate RGB light sources.

Built-in high-precision, triple 12 bit A/D converter.

The amount of light received for each of the 3 RGB colors is detected at a 12-bit resolution, enabling the amplifier to perform calculations using actual 36-bit data and making it the industry’s highest-resolution calculation system. The end result is enhanced stability for previously difficult detection applications.

The amplifier includes a 300 ìs high-speed response mode. As a concrete example of the speed provided by this response, the system is capable of detecting marks that are 1 mm 0.04" wide on sheeting being fed at a speed of 3.3 m/s. (HSPD = during high-speed mode operation)

The self-stabilizer monitors variations in the amount of light produced by the LED and operates to maintain light transmission at a constant and uniform level, cancelling the effects of temperature fluctuations and the passage of time on the efficiency of the transmitter LED.

The “8-bank switching” feature allows you to store 8 settings in the amplifier’s memory and switch among them using an external signal generated by a device such as a PLC. There is also an “external tuning” feature that lets you use an external device such as a push-button to trigger SET operation. These features combine help to smooth changes in production line configuration.

Light source -- Red LED, Green LED, Blue LED

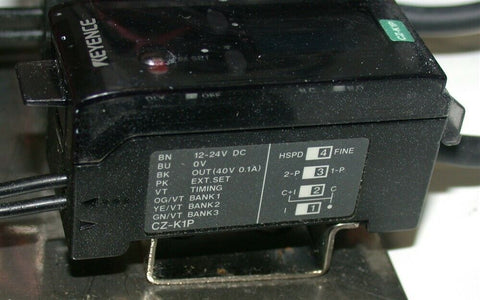

Power Supply - 12 to 24 VDC ±10%, Ripple (P-P): 10% max.

Control Output - NPN or PNP: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
