Lot of 5 Kennametal NG2062LK KC5010 Top Notch Grooving Insert TiAlN Co

Lot of 5 Kennametal NG2062LK KC5010 Top Notch Grooving Insert TiAlN Coated

$ 49⁹⁰

Condition: New

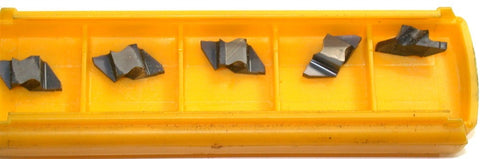

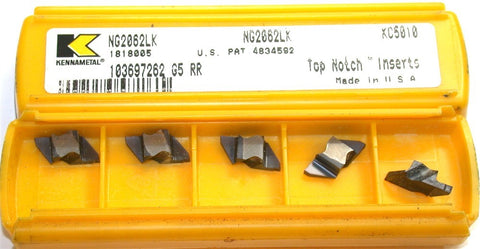

This is an Auction for Lot of 5 New Kennametal Left Hand Top Notch TiAlN Finish Grooving Inserts, No. NG2062LK KC5010.

Each bid is for 5 inserts.

TiAlN Finish, Left Hand, 1.58 mm Cutting Width, 2.79 mm Max Depth, Series Top Notch

Specifications

Insert Style: NG Cutting Width (Decimal Inch): 0.0622

Cutting Width (mm): 1.58 Insert Hand: Left Hand

Maximum Depth of Cut (Decimal Inch): 0.1098 Maximum Depth of Cut (mm): 2.79

Insert Material: Carbide Manufacturer Grade: KC5010

Full Radius: No Corner Radius (Decimal Inch): 0.0075

Corner Radius (mm): 0.19 Rake: Positive

Measurement Type: Metric Insert Size: 2062

Material Grade: C3; C4 Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500

Maximum Depth Of Cut Range (mm): 2.00 to 3.00 Lead Angle: 3

Multi-use Tool: No Series: Top Notch

Coating Process: PVD Rake Angle: 10

UNSPSC Code: 23242105 Chip Breaker: KL

Included Angle Degree: 55 Coating/Finish: TiAlN

Country of Origin: UNITED STATES

I will fully guarantee these inserts.
We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
