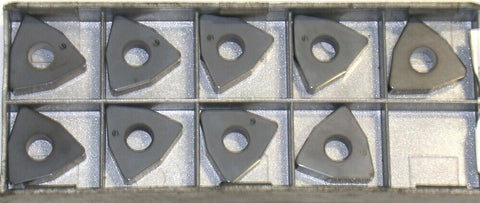

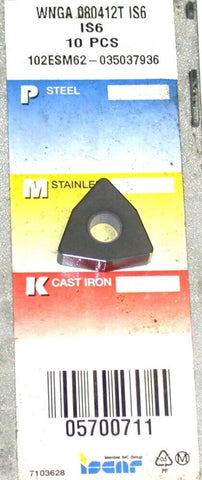

Lot of 9 New Iscar WNGA 080412T IS6 Ceramic turning Inserts 5700711

$ 79⁰⁰

This is an Auction for Lot of 9 New Iscar WNGA 080412T IS6 Ceramic turning Inserts, Catalog # 570071.

Each bid is for 9 inserts.

Double-sided flat rake ceramic inserts. Suitable for machining cast iron.

Applicable Material | Cast Iron | Hi Temp Alloys | Tool Type Turn Ultra hard Inserts

Insert Style WNGA Min D.O.C. 0.079?

Corner Radius (RE) 0.0472? Depth of Cut Maximum (APMX) 0.197?

Insert Size 433 Min. Turning Feed (ft(min)) 0.0012 ?/rev

Cutting Edge Length (L) 0.343? Max. Turning Feed (ft(max)) 0.0374 ?/rev

Insert Thickness (S) 0.187? Chip Breaker Type A

Inscribed Circle Diameter (IC) 1/2? Measurement Type Inch

Cutting Edge Material Ceramic Shape 80° Trigon

Coating Uncoated Series/List # WNGA 433T

Grade IS6 Body Material Carbide

I will fully guarantee these inserts.

We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.

Applicable Material	\| Cast Iron \| Hi Temp Alloys \|	Tool Type	Turn Ultra hard Inserts
Insert Style	WNGA	Min D.O.C.	0.079?
Corner Radius (RE)	0.0472?	Depth of Cut Maximum (APMX)	0.197?
Insert Size	433	Min. Turning Feed (ft(min))	0.0012 ?/rev
Cutting Edge Length (L)	0.343?	Max. Turning Feed (ft(max))	0.0374 ?/rev
Insert Thickness (S)	0.187?	Chip Breaker Type	A
Inscribed Circle Diameter (IC)	1/2?	Measurement Type	Inch
Cutting Edge Material	Ceramic	Shape	80° Trigon
Coating	Uncoated	Series/List #	WNGA 433T
Grade	IS6	Body Material	Carbide
