MIL-RAM SMARTER SAMPLE DRAW LEL TRANSMITTER 01-2535XP23




Description

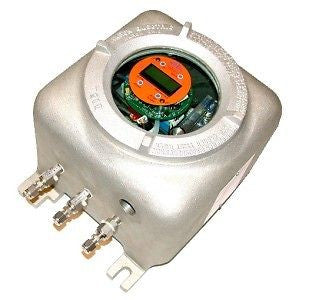

You are bidding on a Very Nice Mil-Ram Smarter Sample Draw LEL Transmitter, Model # 01-2535XP23.

Retail cost of more than $6,950.00.

This is a very nice transmitter in like new condition and it is fully guaranteed.
The model TA-2100 smarter Sample Draw Transmitter provides remote detection of combustible gas using Mil-Ram’s no false alarms catalytic sensor technology.

The smarter electronics operates on 24VDC and provides a standard 4-20mA output. The smarter transmitter utilizes a sampling pump to continuously transport gas samples to the sensor.
This custom version of the smarter sample draw transmitter is housed in an explosion-proof enclosure rated Class I, GR B,C,D.

Enclosure Brand - AKRON ELECTRIC

Enclosure Type 4X
Enclosure Model - XJCTG6

Self-Calibration: unattended span calibration adjustments performed every 30 days based on life curve for sensor

Auto-Calibration: non-intrusive calibrations using a magnet to activate zero and span switches located behind glass window of explosion-proof junction box – no mechanical adjustments required

Sensor On-Board Memory: each sensor includes an embedded, non-volatile memory device which retains all configuration/calibration parameters (does not require battery) 40 year data retention

LCD Display: 12 character x 2 line display provides meter readings and all configuration, alarm, calibration and diagnostic messages

Life Remaining: sensor life remaining based on calibration history, life curve for sensor and electrical characteristics of sensor

15 Minute Time Weighted Average (TWA): calculates/displays rolling 15 minute average value for industrial hygiene measurement

Alarm Relays: four alarm relays; low, mid, high and trouble (fault) – field selectable; non-latching/latching, non-energized/energized, trigger on increasing/decreasing meter reading and 0-255 sec. Time delay. Relays are rated 10A @28VDC, 12A @120VAC, resistive. Trouble relay factory set: energized and nonlatching.

Calibration Mode Alarm Inhibit: transmitter outputs 4.0 mA in calibration mode, alarm relays inhibited for 3 min. after returning to normal operating mode

Modbus RTU RS-485 Output: full or half duplex serial communications for linking up to 247 transmitters on a twisted wire pair to a PC, PLC, Host computer, etc. utilizing Modbus RTU protocol

Digital Filtering: provides increased stability in noisy electrical environments

Analog Output Test: generate 4/8/12/16/20 mA to verify readings/alarms at centralized control system

Analog 4-20mA Output: 16-bit digital-to-analog (D/A) conversion to provide high resolution analog output to a centralized control system (DCS, PLC, Controller, Host Computer, etc.)

Sensor Input: 16-bit analog-to-digital (A/D) conversion to provide high resolution measurement of sensor signal

Advanced Setup Mode: allows configuration of full-scale range, units of concentration, decimal point resolution and gas type
Continuous Diagnostics: continuous diagnostics related to both hardware and software operation with auto reset of micro-controller in the event of software failure. Advanced memory verification to ensure integrity of all setup parameters
Very competitive Shipping rates for our always welcomed International bidders
Shipping and handling is $39.90 within the Continental USA.
