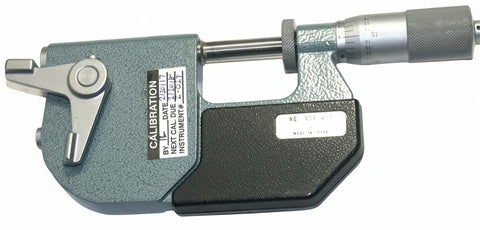

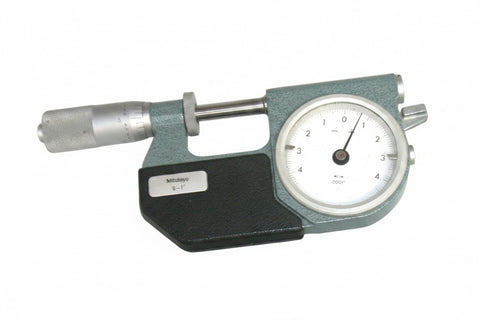

Mitutoyo 510-311 0-1" .0001" Graduation Indicating Micrometer Calibrated
Condition: Used

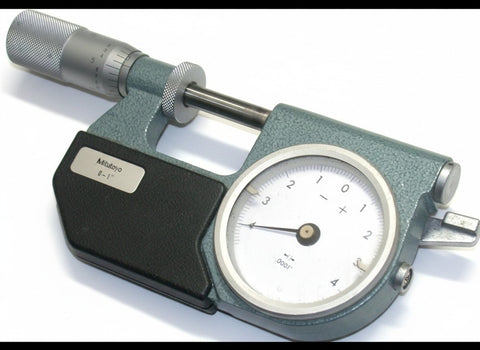

The large dial is used as a comparator to indicate deviation from a preset size.
Specifications
- Manufacturer: Mitutoyo
- Model: 510-311
- Type: Indicating Micrometer / Comparator Micrometer
- Measuring Range: 0 – 1.000 in.
- Dial Resolution: 0.0001 in. (one-tenth thousandth)
- Dial Range: ±0.004 in. from zero
- Spindle Movement: 0.001 in. per dial graduation
- Frame: Cast steel with insulated heat shield
- Measuring Faces: Hardened carbide
- Lock: Spindle lock lever on the right side
- Use: Precision inspection of production parts where variation from nominal size is more important than absolute measurement.
- 0-1" measuring range
- .0001" dial resolution
- Carbide measuring faces
- Inspection-grade comparator micrometer
- Made in Japan

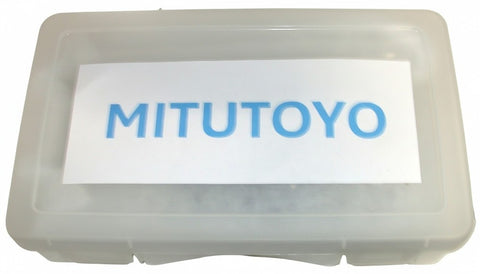

Includes nice storage case shown.
This item is manufactured by the world's largest metrology company, founded in 1934 that creates the most advanced micrometers, calipers, indicators and other measurement tools in the world. I will fully guarantee this item - new cost $1000. We have lots of quality inspection tools available - see my other auctions.
Shipping in the Continental US is $9.90 - - I have very competitive rates for our always welcomed International bidders.
