NEW ARO 1" STROKE STAINLESS AIR CYLINDER 0318-5009-010 Pneumatic Cylinders ARO

NEW ARO 1" STROKE STAINLESS AIR CYLINDER 0318-5009-010

  • $ 2490


NEW ARO 1" STROKE STAINLESS AIR CYLINDER 0318-5009-010

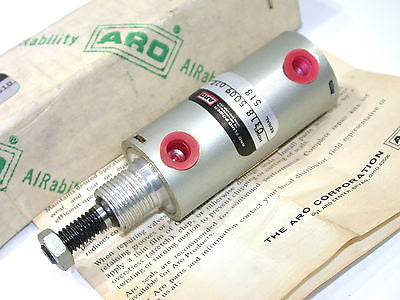

You are bidding on a Stainless Steel piston rod Double Acting Pneumatic Air Cylinder, No. 0318-5009-010 with 1 inch of stroke and a 1 1/8" bore, piston measures 3/8" diameter.
Max Output Force @200 PSI -99 LBS.

Economair round cylinders are medium to heavy-duty units that can be installed anywhere that a repairable cylinder is desired. Prelubed, they're suitable for operation without externally applied lubrication. Unique endcap retention design provides a concentric assembly, resulting in a service life superior to the rod cylinder construction.
Cylinder heads are high tensile strength aluminum alloy, retained by a feed ring wire, a simple design that eliminates excess cylinder weight and bulk.
The barrel I.D. is hard-coated aluminum with a Rockwell C60 hardness. A finish of 16 microinches or better insures low friction and smooth operation.
Piston rod is ground and polished Optional 303 stainless steel and is excelllent for corrosion resistance and washdown applications.
Adjustable cushions provide excellent control of cylinder deceleration.
High grade, self-lubricating bronze rod bearing reduces friction and promotes smooth operation.
Piston seal selection insures job-matched performance - Buna N O-ring, Low Friction U-cup and self-lubricating packings available.
Wear compensating rod wiper protects internal seals and parts from dirt, grit and debris.
NPTF dry seal pipe threads on ports.
Cylinder is repairable so instead of buying complete new units, repair kits can be used.
The piston is also threaded on the end and the cylinder has a front thread mount.
I will fully guarantee this great cylinder.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $4.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
