NEW BIMBA PANCAKE 1 1/2" AIR PNEUMATIC CYLINDER FO-04-1.5-3R

NEW BIMBA PANCAKE 1 1/2" AIR PNEUMATIC CYLINDER FO-04-1.5-3R

  • $ 1789

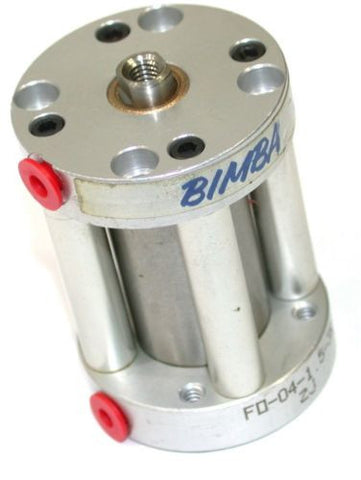

You are bidding on a new Pneumatic Bimba Double Acting, Single End Rod Pancake Air Cylinder with Screw clearance holes top and Bottom, Model # FO-04-1.5-3R with 1  1/2 Inch of stroke, 3/4" Bore, and a 5/16" piston. Cylinder measures 2 1/16" High x 1 1/2" Diameter.Features
Force is .4 x air pressure
Body - 304 Stainless Steel
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Piston Seals - Buna N
Rod Bushing - Oil Impregnated Bronze
Rod Seals - Buna N O-ring
Pressure Rating - 200 PSI Maximum (Air only)
Temperature Rating - From -20°F to +150°F (-25°C to +65°C)
For more information see:
http://www.bimba.com/Global/Library/Catalogs/Bimba%20Catalogs/FL_FlatCylinders.pdf
Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.
I will fully guarantee this great cylinder.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $3.90 -I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
