NEW BIMBA PANCAKE 1" AIR PNEUMATIC CYLINDER FO-04-1-3R

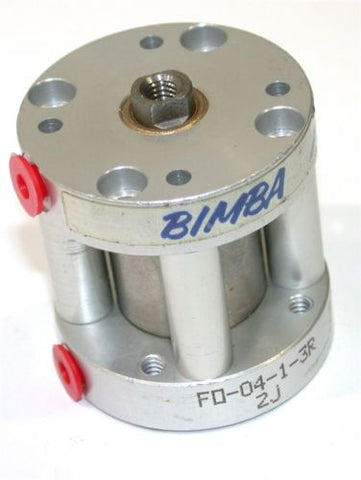

You are bidding on a new Pneumatic Bimba Double Acting, Single End Rod Pancake Air Cylinder with Screw clearance holes top and Bottom, Model # FO-04-1-3R with 1 Inch of stroke, 3/4" Bore, and a 5/16" piston. Cylinder measures 1 9/16" High x 1 1/2" Diameter.Features
Force is .4 x air pressure
Body - 304 Stainless Steel
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Piston Seals - Buna N
Rod Bushing - Oil Impregnated Bronze
Rod Seals - Buna N O-ring
Pressure Rating - 200 PSI Maximum (Air only)
Temperature Rating - From -20°F to +150°F (-25°C to +65°C)
For more information see:
Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.
