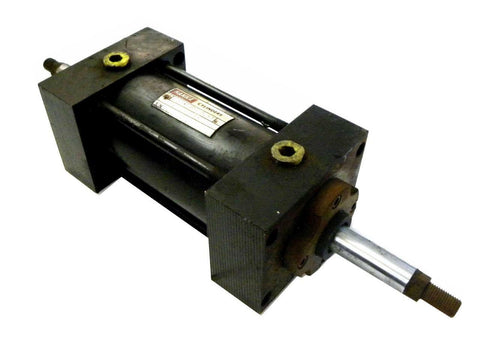

NEW HANNA PNEUMATIC CYLINDER 2-1/2" BORE 3" STROKE ME5D3ANCC 2.50 3.00 DAF1G
This is a fixed aucton for a Heavy Duty Hanna Cylinders Pneumatic Tie Rod Cylinder.
Model: ME5D3ANCC 2.50 3.00 DAF1G
Item specifications:
Brand
Hanna Cylinders
Model
ME5D3ANCC 2.50 3.00 DAF1G
Bore
2-1/2"
Stroke
3"
Piston Diameter
5/8"
Force
4.91 times air pressure
Pressure Rating
250PSI
DAF1G
Double ended male thread
Head Flange Mount
Hanna's series 3A low pressure pneumatic cylinders are
designed and built to meet today's exacting industrial
requirements. Rugged, performance oriented units, 3A
cylinders incorporate field proven design features which
assure long, trouble-free service.
Hanna's piston rods are machined to a close tolerance with
minimum stock removal to maximize shank size and reduce
stress. Relief grooves are machined in areas of high stress
to guard against fatigue failures. The rods provide 100,000
minimum yield strength in diameters up to 3.50"; 59,000
average yield stength in 4.00" Diameter and above. All
sizes are hard chrome plated for scratch and corrosion
resistance. To maximize seal and bearing life, plated sur-
faceis polished to a 6-8 micro-inch finish.
More Information and specs can be found here:
This unit is exactly as pictured and fully guaranteed.
Founded in 1901, Hanna Cylinders is a leading designer, manufacturer and marketer of premium quality, industrial grade tie-rod and custom engineered cylinders.
