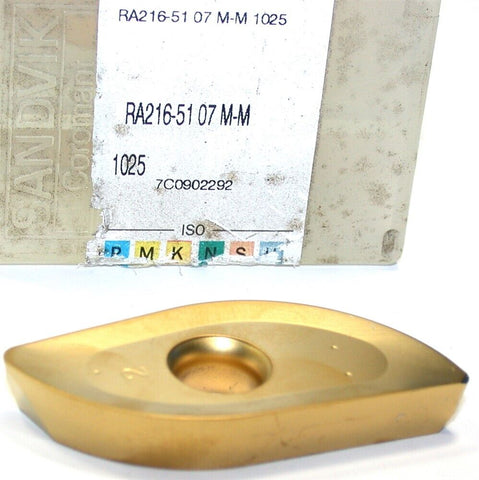

Sandvik CoroMill 216 Ball Nose TiN Coated Inserts RA216-51 07 M-M 1025 New
Condition: New
Brand: Sandvik Coromant
Insert Material: Carbide
Insert Type: Drill Insert
MPN: RA216-51 07 M-M 1025
Model: Carbide Inserts
Each bid is for 1 insert.
5/16" Thick
Technical Specifications:
•ANSI Number: RA216-51 07M-M•Brand Name: Sandvik Coromant•Chip Breaker: MM•Chip Breaker Application: Medium•Coating: TiCN + TiN•Coating Process: PVD•Depth of Cut: 1.7638•For Use With: Steel•Grade: 1025•Hi-Temp Alloys (S): x•Insert Shape: Round BallNose•IC: 1.000•ISO Number: RA216-51 07M-M•Lead Angle: Ball Nose•Material: Carbide•Model Number: RA216-51 07M-M•Mounting Hole Diameter: .354•Mounting Style: Screw Clamp•Nominal Diameter (in.): 2•Parallel Land: 1.000•Radius: 1.000•Rake: Positive•Right/Left Hand: Neutral•Stainless Steel (M): x•Steel (P): x•Style: RA216-51•Thickness: .313•Type: Milling Insert
Description:
•CoroMill® ball nose endmill•Robust metal remover for profile milling•Versatility – general contouring and profiling. Pocketing by ramping or helical interpolation. Suitable for HSM, high speed machining. Insert location The insert has two cutting edges, one for periphery location and one for central. Follow the marking on insert and cutter body.
Shipping Info:
•Actual Weight – .0174•Dimensions – Height: 2.00 Length: 5.50 Width: 2.50
CoroMill® 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.
Benefits
- Maximum security and reliability
- High metal removal rate
- Easy to apply
Application
- Profiling
- Copy milling
- Contour milling
- Roughing to semi-finishing
I will fully guarantee these inserts. We have lots of quality inserts available - see my other auctions.
Shipping in the Continental US is free- I have very competitive rates for our always welcomed International bidders.
