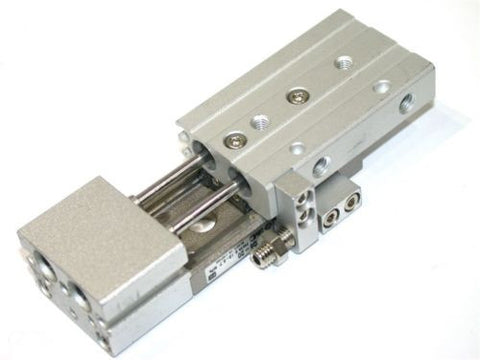

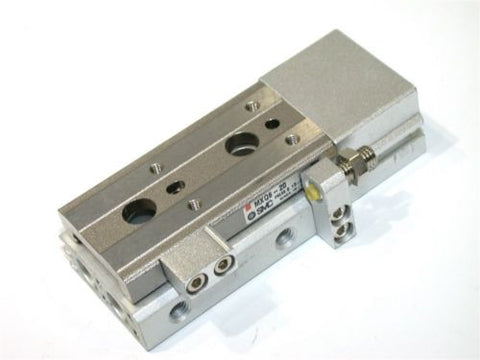

This is an auction for a Like New Pneumatic SMC Stainless Linear Ball Slide, Model #MXQ6-20 with over 3/4"(20MM) of stroke and a 6mm bore.
Applications that call for precise movement require a cylinder and a precision guide. This MXQ slide accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXQ has a 0 to .787" inches (20mm) stroke and is standard with auto switch capability.
Features
Table and guide rail integrated - Made of martensitic stainless steel
Dual Rods -- Twice the output of conventional cylinders
Recirculating linear guide - Wide type linear guide block body made of martensitic stainless steel
Positioning pin holes - Body mounting repeatability improved
Load resistance against sudden and excessive external forces is nearly three times greater than series MXS.
20mm (3/4") stroke
Rubber stopper both ends
Force exerted to 40N at .7 MPa
Repeatability of work mounting - threads for work mounting.
Work table and air cylinder are integrated compactly.
Mounting is possible in three directions.
Slide measures 1 1/4" wide x 3" long in the closed position. For more Information see:
http://www.smcpneumatics.com/pdfs/MXQ.pdf
http://www.smcpneumatics.com/MXQ6-20.html
I will fully guarantee this great very expensive precision unit - New Cost $317.
Many more sizes of air slides available - see my other auctions.
Shipping in the Continental US is $6.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
