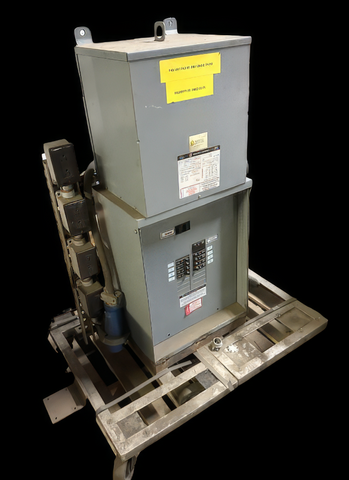

Square D Mobile Power Distribution 8 Outlet Breaker Panel 208V 1 Ph to 120V 1 Ph
Condition: Used
Brand: Square D
Application: Charging/Power,Commercial,Electrical Wiring,Electronics,Industrial,Multi-Outlet/Power Splitter,Power Transformers,Voltage Conversion
Box Shape: Rectangular
Color: Gray
Control Style: Switch
Country/Region of Manufacture: United States
Current Type: AC
Custom Bundle: No
MPN: MPZ15S62F
Suitable For: Interior
Type: Main Breaker Panel
Maximum Amperage: 125 A
Number of Outlets: 8
Number of Phases: 1
Number of Spaces: 11-20
Unit Quantity: 1
Unit Type: Unit
UPC: Does not apply
Description
This listing is for a Square D / Custom Built Power Distribution Unit.
Specifications:

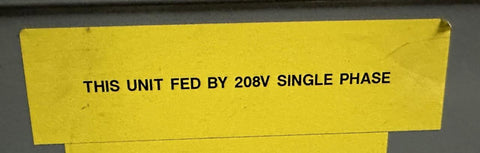

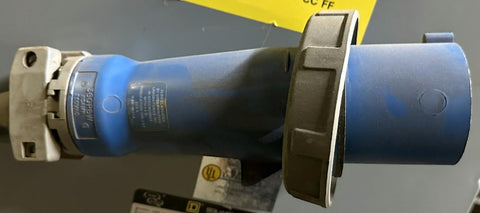

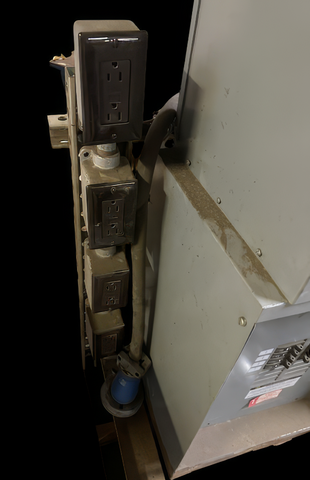

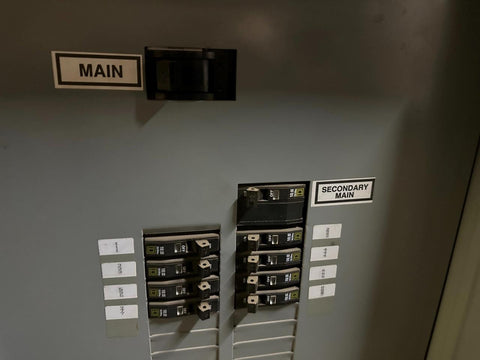

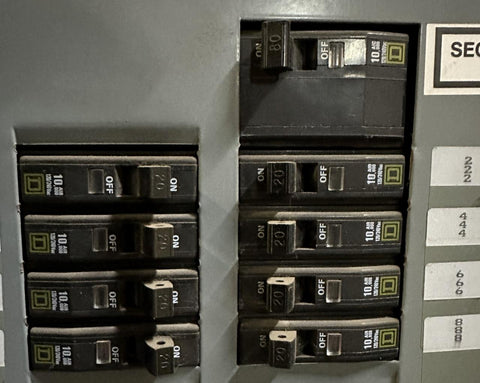

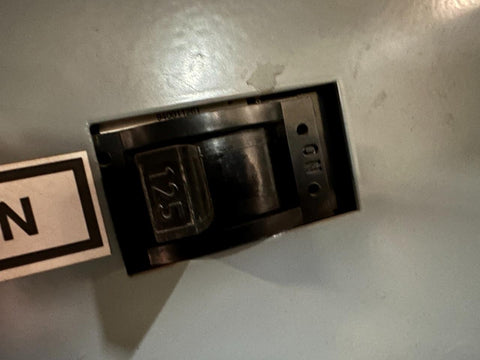

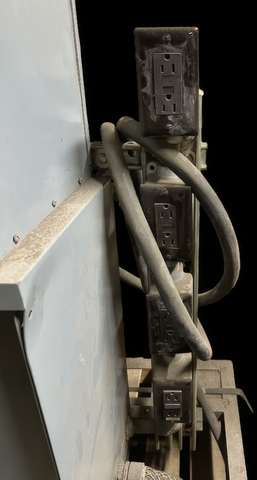

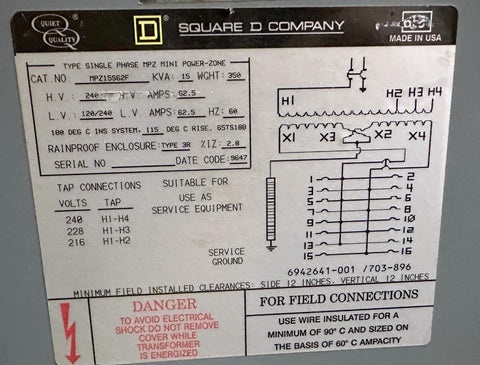

This is a custom built mobile power distribution unit. It mostly utilizes Square D parts. We believe it steps down 208V Single phase power to 120V single phase and distributes to 8 power outlets. The outlets are controlled by the pictured panelboard that features a 20A breaker for each outlet. The main breaker on the panelboard is 125A and it has a secondary main that's 80A. Power is fed to the unit using a Hubbell 360P6W plug. It has a Square D MPZ15S62F Mini Power-Zone transformer that features the following specs:
KVA: 15
HV: 240 @ 62.5A
LV: 120/240V @ 62.5A
HZ: 60
Rainproof Enclosure Type 3R
%IZ: 2.8
The unit is mounted on a cart and can be transported easily.
