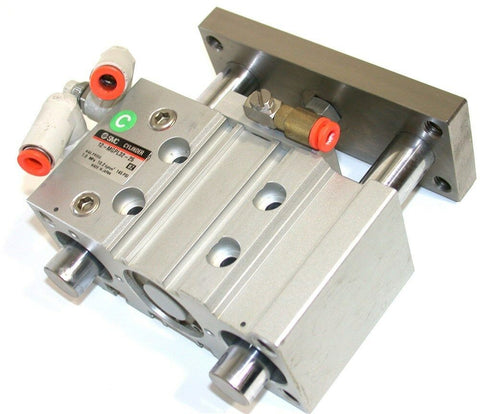

This is an Auction for up to 14 Pneumatic SMC Air Ball Bushing Bearing Compact guided Cylinder Slides, Model # 12-MGPL32-25 with 1" inch (25mm) of stroke.
PLEASE NOTE: Each Bid is for ONE Slide.
The MGP is designed for high side load applications found in material handling, lifting and stopping. The cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body. As the stroke length increases, so does the bearing length, thus enhancing the cylinder's load bearing capacity. Conventional designed guided cylinders have a set bearing length resulting in dramatic decreases in side load capacity as stroke lengths increase. The MGP is the latest generation of guided cylinders and offers higher load capability, longer strokes, 2 port locations, switch mounting grooves on two sides, and a more versatile T-slot mounting.
Slide bearing Strength against side load is more than 2 times as compared conventional stopper cylinder.
Features
Relief port type
Piping is possibe from two directions
1" (25mm) stroke
Force to 181 lb.f
1 1/4" (30mm) Bore
Non-rotating accuracy - ±0.07°
to 145 psi
Applicable in a clean room environment.Ideal for use in conveyor lines for semiconductor (LSI), liquid crystal (LCD), food processing, pharmaceutical, and electronic parts, etc.
For more information see:
( https://www.alliedelec.com/Images/Products/Datasheets/BM/SMC_CORPORATION/SMC-Corporation_Industrial-Control_4991316.pdf )
Slide measures 4 1/2" wide - includes air ports shown.
I will fully guarantee this great precision unit.
Many more sizes of air slides available - see my other auctions.
Shipping in the Continental US is $9.90 - - I have very competitive rates for our always welcomed International bidders.
